SKU: 3-10208-3-10209 Categories: Industrial Dollies, Transport Dollies

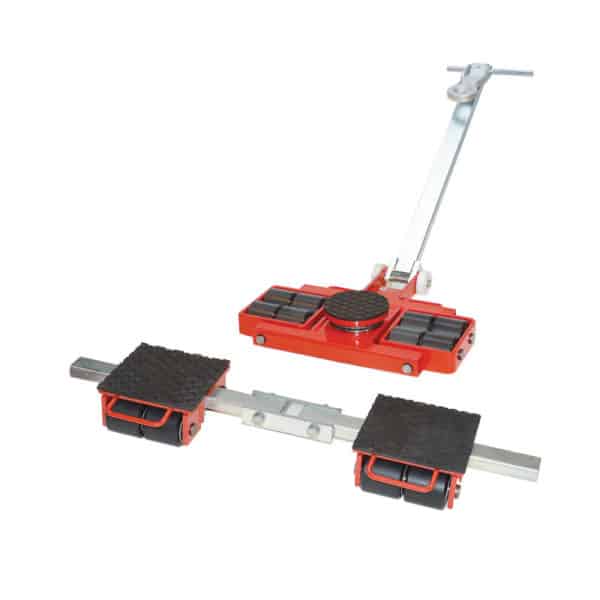

F6/L6 Transport Dollies

For moving large loads through tight spaces.

$935.00

In stock

$1,295.00

In stock

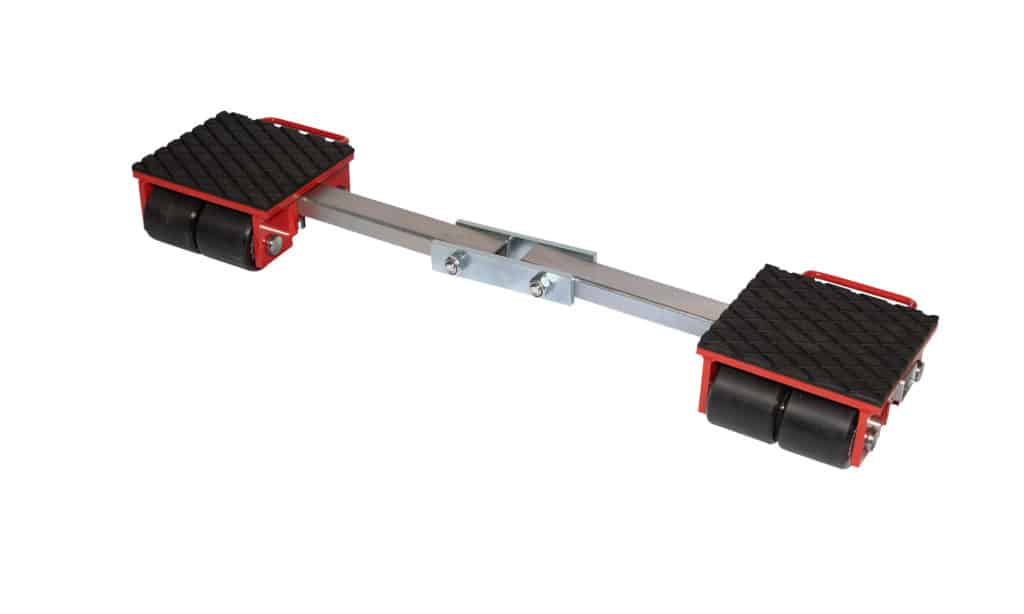

F6 Transport Dolly

SKU: 3-10208 Categories: Industrial Dollies, Transport Dollies

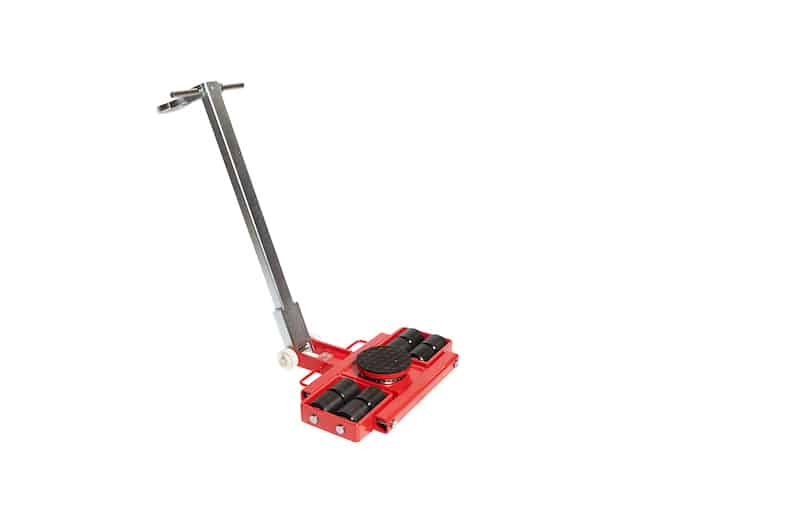

L6 Transport Dolly

SKU: 3-10209 Categories: Industrial Dollies, Transport Dollies

How to use GKS transport dollies

Additional information

Weight66 lbs
Load Capacity

13,200 lbs (6 t) 60kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 8
110 mm / 8

Contact Surface / Cassette

7.9 x 8.7" (200 x 220mm)

Connecting Bar, Adjustable

25.2 – 40.6" (640 – 1030 mm)

Overall dimensions (L x W)

7.9 x 40.6" (200 x 1030 mm)

Weight

60 lbs. (30 kg)

Additional information

Weight90 lbs
Load Capacity

13,200 lbs (6 t) 60kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 8
110 mm / 8

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

Steering Handlebar

37.4" (950 mm)

Overall dimensions (L x W)

20.7 x 23.5" (525 x 598 mm)

Weight

90 lbs. / 41 kg

Key Features

  • Low loading height (4.3″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time

Moving heavy loads through small spaces and sharp corners can be challenging without the right equipment. The GKS-Perfekt L6 Transport Dolly serves as part of a flexible, three-point moving system, allowing for easy maneuvering through workshops and warehouses.

The L6 Transport Dolly can support up to 13,200 lbs (6 metric tons) and features a swivel top and tow eye, allowing for safe front steering support of load-moving systems. This dolly can be used in combination with F-DolliesRotating RL Dollies or steerable Tandem TL Dollies to carry up to 26,400 lbs (12 metric tons). With a 4.3” / 110 mm loading height, the L6 dolly can be used interchangeably with the GKS-Perfekt F3F9F12 and F18 dollies, and the RL2 or RL4 rotating dollies. A nickel-plated version is also available for use in food processing, pharmaceutical, and chemical industry clean rooms.

GKS Transport Dollies sit low to the ground, providing a safe, low center of gravity and low head clearance. Our three-point dolly system is made not to slip out from heavy loads, even under pulling and tugging forces. Like all GKS dollies, the L6 Transport Dolly features rollers that do not mark floors, while still providing low rolling resistance and high stability.

This dolly has been put to work in a number of industrial, manufacturing and warehousing facilities and has been tested before delivery to meet our high standards of quality and performance. All GKS-Perfekt products come with a five-year limited warranty.

If you are interested in the L6 transport dolly from GKS-Perfekt and would like more information, request a quote or call 937-324-8867 today to speak with one of our experienced team members.
