SKU: 7-14320 Category: Robot

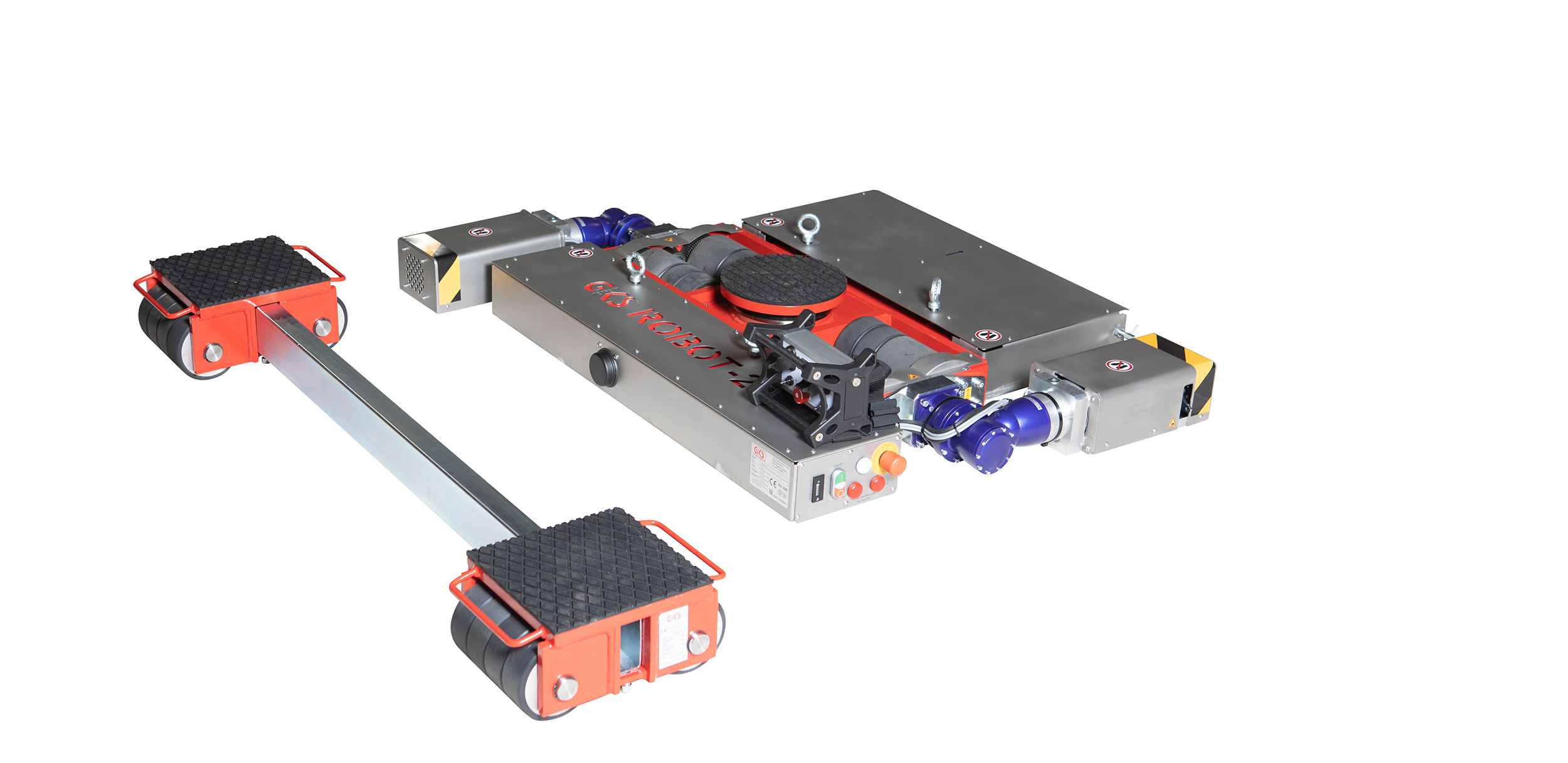

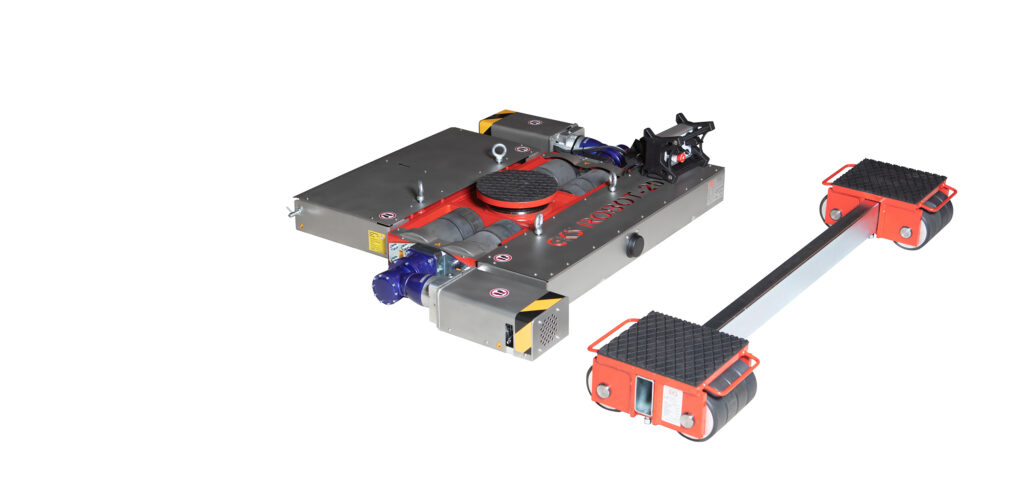

ROBOT 20

Our battery-powered industrial dolly system.

$66,900.00

How to Use a GKS Robot

Why Buy a GKS Robot?

Additional information

Weight 820 lbs
Load Capacity

44,000 lbs (20 t) 200 Kn

Drive

DC Motor (24 V / 1000 W)

Battery Type

Lithium-Ion

Battery Life

4-6 hours

Speed

Min: 10 ft/min Max: 20 ft/min

Incline max**

3%

Loading Height

7.1" (180 mm)

Number of Special heavy-duty wheels L-ROBOT

4 (Drive) + 8(Supporting) (4" / 2" / 105 / 53 mm wide)

Number of Special heavy-duty wheels F-Dolly

16 (3" / 76 mm wide)

L-ROBOT Dimensions (L x W x H)

46.8 x 52.2 x 7.1" /
1187 x 1326 x 180 mm

F-ROBOT Dimensions (L x W x H)

15 x 63 x 7.1" /
382 x 1600 x 180 mm

Contact Surface L-ROBOT

Diameter 9.8" / 250 mm

Contact Surface / Cassette

10.8 x 10.5" (275 x 266 mm)

Connecting Bar, Adjustable

1.4' – 5.3' (440 – 1600 mm)

L-ROBOT Weight

567 lbs. / 255 kg

F Dolly Weight

254 lbs. (115 kg)

Key Features

  • Powered by a long-lasting lithium-polymer battery
  • Remote control that allows for both simultaneous steering and driving
  • Can move up to 20 ft/min
  • Loading height of 7.1″
  • 2 year/900 hour warranty

Competitive Edge

  • No cords to deal with
  • No exhaust from propane- able to be used more places
  • Remote control allows you to be your own spotter
  • Less manpower needed to move the load
  • No need for a towing device
  • Straight line driving function to keep ROBOT moving perfectly straight
  • Optional: Lift table to lift the load directly from the ROBOT
  • Move heavy loads up to 44,000 lbs./20 tons safely and autonomously with our Remote-Operated Battery-Operated Transport system the GKS-PERFEKT ROBOT 20
  • Lithium-Polymer battery technology which allows for autonomous transport without external energy sources (electricity, hydraulics, air)
  • Clear transport driveway for increased safety (no hydraulic or pneumatic hoses or power cords are blocking the driveway)
  • Simultaneous steering and driving
  • Secure positioning of the ROBOT 20 from the distance by the remote control
  • Battery packs are exchangeable at the front of the dolly during operation
  • No need for any towing device
  • Low loading height of 7.1"/180 mm
  • Max. load capacity is 44,000 lbs./20 tons.
  • For more information callĀ 937.324.8867 today!
