SKU: 3-10216-3-10215 Categories: Industrial Dollies, Transport Dollies

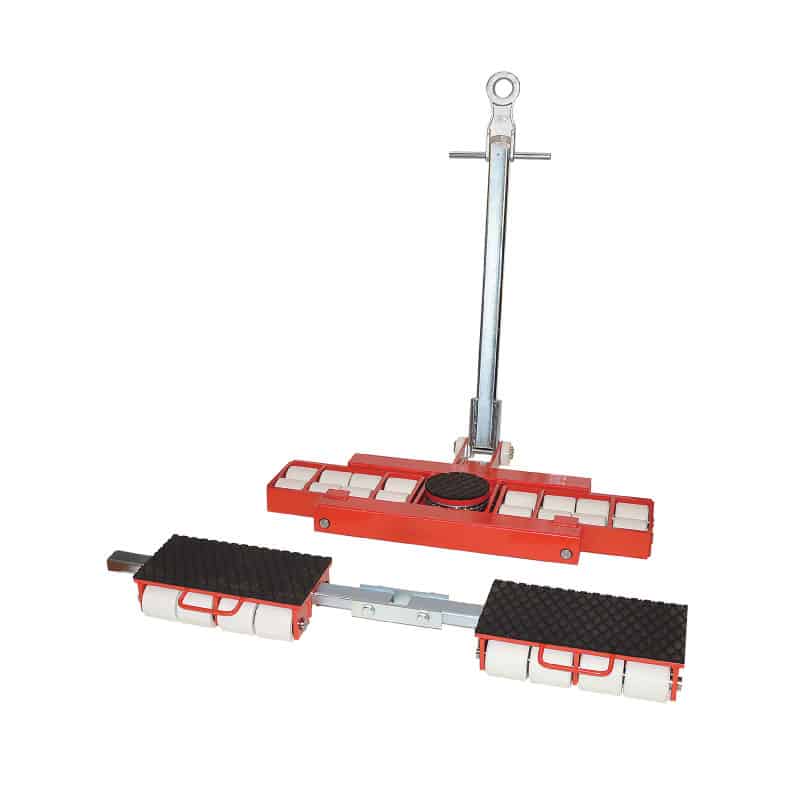

F18/L18 Transport Dollies

For moving large loads through tight spaces.

$2,075.00

In stock

$2,890.00

In stock

F18 Transport Dolly

SKU: 3-10215 Categories: Industrial Dollies, Transport Dollies

Learn More

L18 Transport Dolly

SKU: 3-10216 Categories: Industrial Dollies, Transport Dollies

Learn More

How to use GKS transport dollies

Additional information

Weight 121 lbs
Load Capacity

39,600 lbs (18 t) /180kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Contact Surface / Cassette

7.9 x 16" (200 x 407 mm)

Connecting Bar, Adjustable

39.9 – 56.3" (1014 – 1430 mm)

Overall dimensions (L x W)

7.9 x 56.3" / 200 x 1430 mm

Weight

121 lbs (55kg)

Additional information

Weight 181 lbs
Load Capacity

39,600 lbs (18 t) /180kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

Steering Handlebar

42.5" (1080 mm)

Overall dimensions (L x W)

24.9 x 40.1" / 633 x 1018 mm

Weight

181 lbs. / 82 kg

Key Features

  • Low loading height (4.3″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time

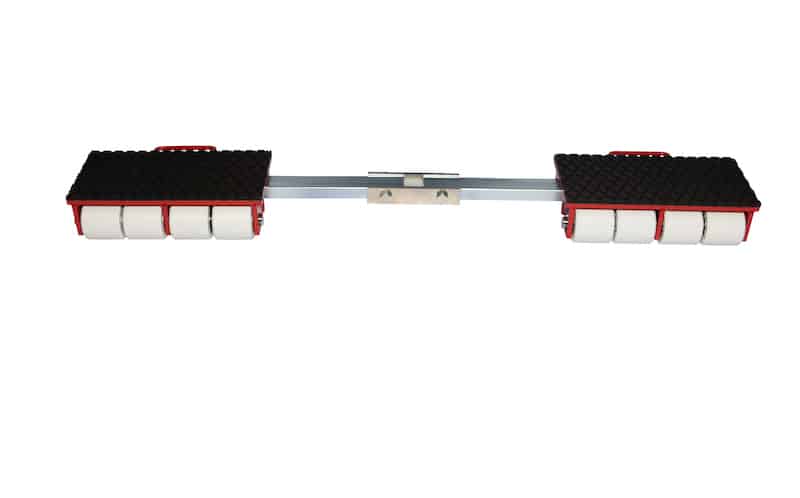

The F18 Transport Dolly, when used as the rear-axle of a three-point moving system, provides a consistently effortless ride for loads of up to 18 metric tons. This F-Dolly can serve as the backbone of a no-slip, no-scuff, no-stress system for use in manufacturing facilities, warehouses, and anywhere else heavy loads need to move through tight spaces.

The adjustable connecting bar allows a range of widths from 39.9 inches to 56.3 inches, offering versatility and flexibility when combined with the L18 steerable dolly.  The jointed connecting bar allows smooth, secure transport on uneven facility floors.

The F18 has a loading height of 4.3 inches, making it interchangeable with the L3, L6, L9 and L12 dollies, or it can be adapted for a four-point system with Tandem dollies Tl6 or Tl2, as well as two rotating dollies RL2 or RL4. Combined with our L18 transport dolly, the pair has a load capacity of 79,200 pounds (36 metric tons).

F18 Transport Dollies are available with nickel plating for use in industries with clean rooms, such as pharmaceuticals, microprocessers and food and beverage processing. Both versions, as with all GKS-PERFEKT products, go through a stringent quality assurance process and are protected with a five-year limited warranty. These products are stocked and are typically shipped within one business day.

If you’re interested in receiving a quote for the F18 Width-Adjustable Transport Dolly, or need more assistance building a proper heavy load moving system for your business, call our experienced team at (937) 324-8867.

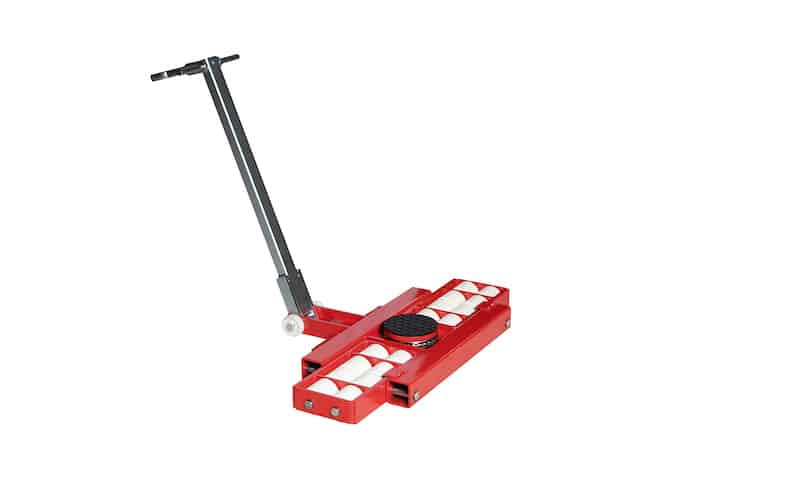

Transporting heavy equipment and material across the shop floor requires strength, safety, and freedom of movement. The L18 Transport Dolly from GKS-PERFEKT allows for unconstrained movement, adaptability and the strength to transport items weighing up to 39,600 pounds (18 metric tons) without damaging surfaces. With rollers that are positioned on swiveling cassettes, the L18 even enables fluid transportation over uneven surfaces.

One of our strongest transport dollies, the L18 can be paired with the width-adjustable F18 Transport Dolly to create a three-point-system that can sufficiently allocate 79,200 pounds of weight (36 metric tons). The three-point moving system delivers secure and reliable transportation, no-slip security and supplemental floor scuffing protection. Due to its low loading height of 4.3 inches (110 mm), the L18 works interchangeably with the F3F6F9, and F12 GKS dollies.

The L18 Transport Dolly is insured with a five-year limited warranty, and each is tested and approved at our factory to ensure it adheres to the highest standards of excellence.

We help our customers find the best products for their specific needs. If you are interested to know what the L18 Transport Dolly from GKS can do for you, request a quote or call 937.324.8867 and one of our expert team members will assist you.
