SKU: 3-10313-3-10312 Categories: Industrial Dollies, Transport Dollies

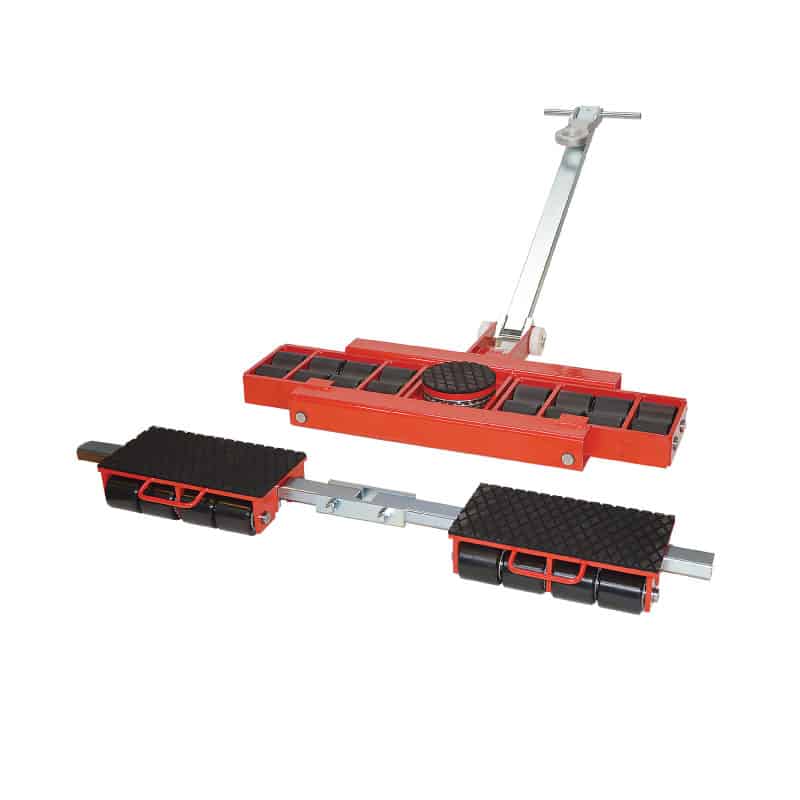

F12/L12 Transport Dollies

For moving large loads through tight spaces.

$1,714.00

In stock

$2,596.00

In stock

How to use GKS transport dollies

Additional information

Weight121 lbs
Load Capacity

26,400 lbs (12 t) 120kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Contact Surface / Cassette

7.9 x 16" (200 x 407 mm)

Connecting Bar, Adjustable

39.9 – 56.3" (1014 – 1430 mm)

Overall dimensions (L x W)

7.9 x 56.3" / 200 x 1430 mm

Weight

121 lbs (55kg)

Additional information

Weight181 lbs
Load Capacity

26,400 lbs (12 t) 120kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

Steering Handlebar

42.5" (1080 mm)

Overall dimensions (L x W)

24.9 x 40.1" / 633 x 1018 mm

Weight

181 lbs. / 82 kg

Key Features

  • Low loading height (4.3″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time

Invest in an easier way to move your heavy loads.

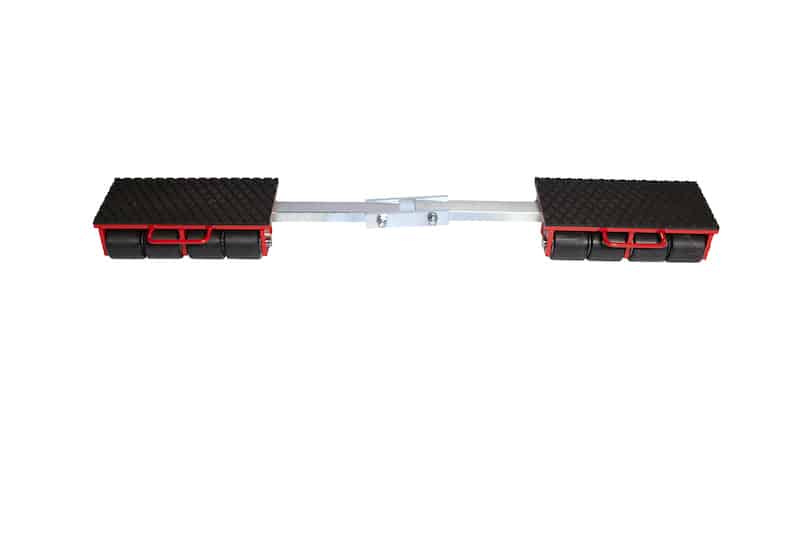

The F12 Transport Dolly from GKS-Perfekt is designed to work as part of a stable, three-point moving system that helps facilitate heavy-load moving in manufacturing facilities, shops, and warehouses.

This mid-size dolly can transport loads up to 26,400 lbs (12 metric tons) and has a fixed loading height of 4.3” (110 mm). The F12 dolly is a straight-line dolly, serving as the stable rear axle of a three-part moving system. When used in combination with other transport dollies like steerable L-Dollies, other F-Dollies, rotating RL Dollies and steerable Tandem TL Dollies at the same loading height, it can transport up to 52,800 lbs (24 metric tons). A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical industries.

GKS dollies ride on special rollers that provide low resistance and high stability so that, regardless of the flooring type in your facility, your floors will not be marked or scuffed. The F12 features an adjustable width for better weight distribution loads, as well as a connection bar with joints that compensate for uneven floors.

All GKS-Perfekt products come with a five-year limited warranty and have been tested before delivery to meet our high standards of quality and performance.

If you are interested in the F12 transport dolly from GKS-Perfekt and would like more information, request a quote or call 937-324-8867 to speak with an experienced team member.

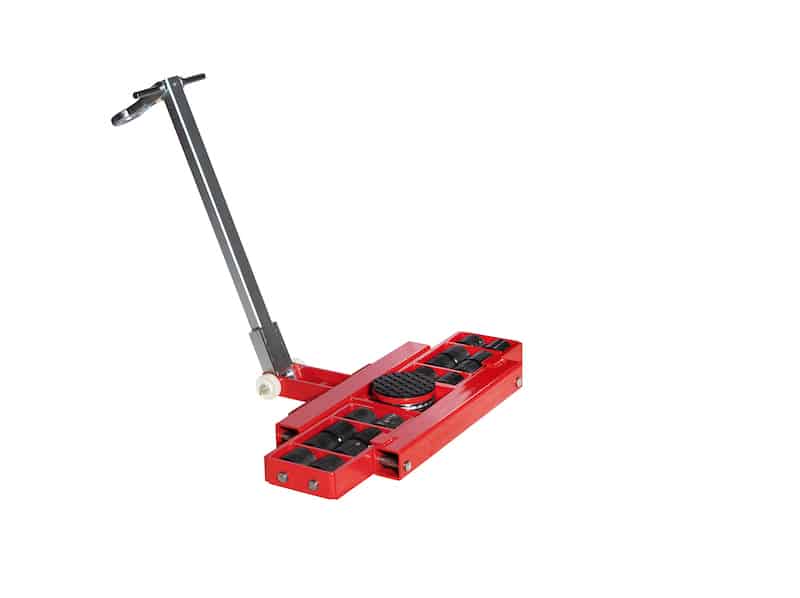

Moving heavy loads any distance in your facility is a serious undertaking with inherent risks. When loads reach an excess of 20,000 pounds (9 metric tons), your staff needs reliable transport equipment. The L12 Transport Dolly from GKS-PERFEKT offers a formidable combination of nimble handling and impressive strength. Moving loads up to 26,400 pounds (12 metric tons) in your warehouse’s most narrow spaces has never been easier.

This dolly features a swiveling top and low center of gravity to give the operator a safe, easy-to-control steering experience. Combined with an F12 width-adjustable dolly to form a three-point moving system that effectively distributes weight, your personnel can transport up to 26,400 pounds (12 metric tons) securely and effectively. The three-point dolly system provides substantial protection from slipping, even with pulling and tugging, without scuffing up floors. Its 16 rollers are replaceable, seated in swiveling cassettes to counteract uneven floors, and allow the very low loading height – just 4.3 inches.

The dolly has a wide variety of applications in typical warehouse and industrial facilities, and GKS-PERFEKT also offers a nickel-plated version for clean room uses, such as electronics, food processing, and chemicals. As with all GKS-PERFEKT products, the L12 Transport Dolly comes with a five-year limited warranty, and each dolly is tested and approved at our factory to ensure it adheres to our high standards.

The team at GKS-PERFEKT is committed to finding you the high-quality load-bearing system that will best meet your business’s needs. Request a quote or call us direct at (937) 324-8867 for more detailed information on the L12, our transport dollies and three-point moving systems from GKS-PERFEKT.
