How to use GKS transport dollies
Additional information
Weight | 33 lbs (15 kg) |
---|---|
Load Capacity | 6,600 lbs (3 t) 30kN |
Loading height / number of wheels ( 85 x 85 mm) | 4.3" / 4 |
Contact Surface / Cassette | 5.9 x 5.9" (150 x 150 mm) |
Connecting Bar, Adjustable | 11.8 – 39.4" (300 – 1000 mm) |
Overall dimensions (L x W) | 5.9 x 39.4" (150 x 1000 mm) |
Additional information
Weight | 27 lbs (12 kg) |
---|---|
Load Capacity | 6,600 lbs (3 t) 30kN |
Loading height / number of wheels (85 x 85 mm) | 4.3" / 4 |
Swivel Plate / Steering Angle | ∅ 6.7" (170 mm) / ± 90° |
Steering Handlebar | 37.4" (950 mm) |
Overall dimensions (L x W) | 9.4 x 10.6" (238 x 270 mm) |
Key Features
- Extremely low loading height (4.3″)
- Connecting bar included with purchase
- Width is adjustable based on the load
- Durable, non-marking rollers
Competitive Edge
- Thick, grooved rubber pads to prevent load slippage
- Simplified Design—less parts, less problems
- Next day lead time
Steerable transport dollies effortlessly move heavy loads throughout your facility.
Maneuvering heavy loads around tight corners and spaces can be challenging without the right equipment. Designed for ease of steering and movement, the L3 transport dolly delivers the load control you need.

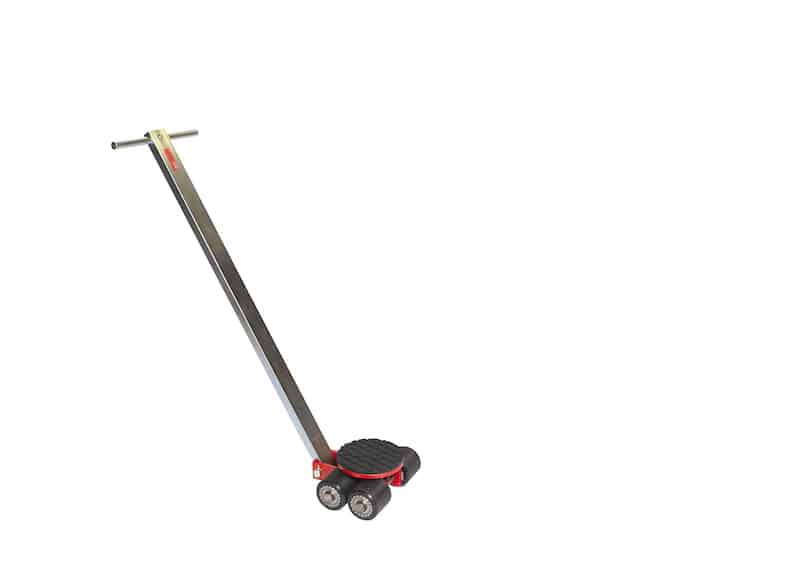

The GKS Perfekt L3 Transport Dolly serves as part of a three-point moving system for the effortless moving of heavy loads in manufacturing facilities, shops and warehouses. Our L dollies feature a swivel top and tow eye for safe front-steering support. Its small size enables use in tight spaces while still transporting loads up to 6,600 lbs (3 metric tons).
To help you easily move large loads through your facility, the L3 has a loading height of 4.3”/110 mm, which keeps loads close to the ground for a safe, low center of gravity, and greater head clearance. For additional assistance with load transportation, the L3 dolly can be used in combination with the F6, F9, F12, F18, RL2, or RL4 dollies to evenly distribute the weight of larger loads. Special rollers on the L3 dolly provide low resistance and high stability, without leaving your floors marked and scuffed.
Like many GKS dollies, the L3 transport dolly is available in a nickel-plated version for use in clean room industry sectors such as chip manufacturing, food processing, pharmaceuticals, and chemical processing. Each GKS dolly has been tested to ensure it meets the high standards of quality and performance of all GKS-Perfekt products, and comes with a five-year limited warranty.

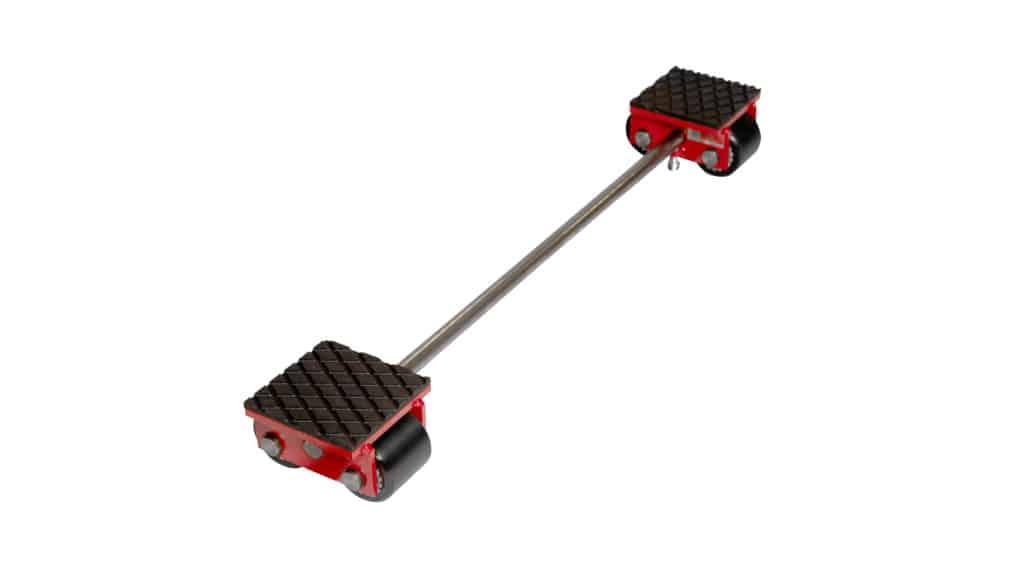

The GKS-Perfekt Transport Dolly F3, part of our straight-line F-Dollies, transports heavy loads and features a connection bar that adjusts to distribute weight while reliably supporting your facility’s needs.
The F3 transport dolly can be used in combination with:
- Tandem Dollies, including the TL6, TL12, TL20, and TL40 to offer significantly increased load capacity to transport machines, frame structures, and bulky goods.
- RL2 and RL4 Rotating Dollies offering a 360-degree swivel and a wide range of load capacity to easily and safely manage big loads in tight spaces.

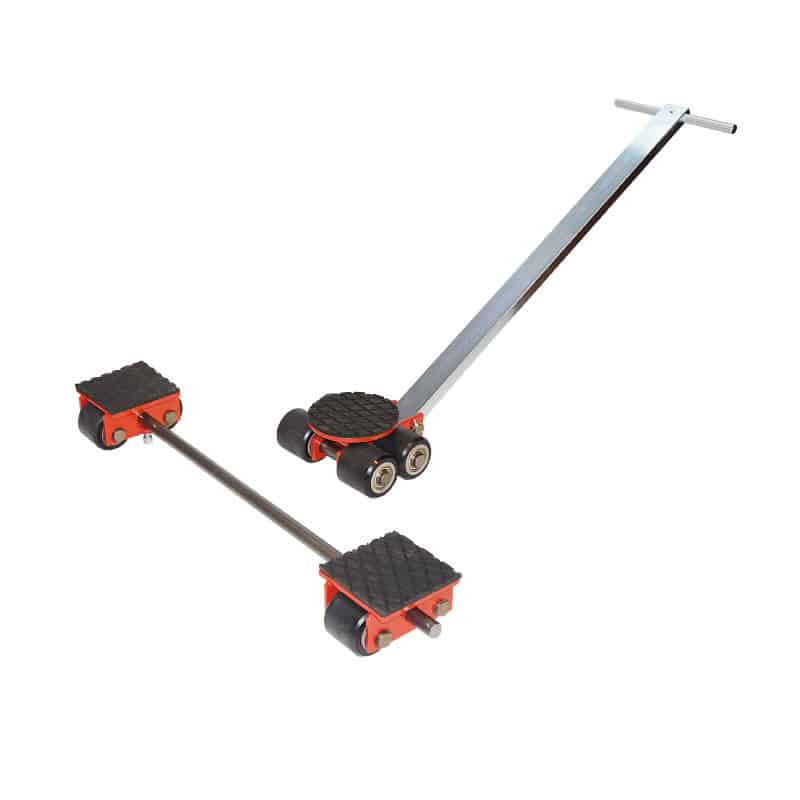

The F3 features a standard use three-point-system in combination with the steerable dolly L3. With the 4.3-inch (110 millimeter) loading height, the F3 transport dolly is interchangeable with L Dollies, including the L6, L9, L12 and L18, featuring swivel top and tow eye features for safe front steering support.
With the adjustable width, the F3 can accommodate loads of up to 6,000 pounds (3 metric tons) when used independently. When used with the L series or other tandem or rotating dollies, the F3 can manage up to 13,200 pounds (6 metric tons) safely and securely.
Like all GKS-Perfekt dollies, the F3 rollers will not mark floors, provide low rolling resistance and high stability, and the F3 is available in a nickel-plated version for clean room use in industries such as food, pharmaceuticals, and chemical processing.
All GKS-Perfekt products come with a five-year limited warranty and have been tested before delivery to meet our high standards of quality and performance.
If you are interested in the F3/L3 transport system from GKS-Perfekt and would like more information, request a quote or call 937-324-8867 today to speak with one of our experienced team members.
