SKU: 1-13292 Categories: Jacks, Universal Jacks

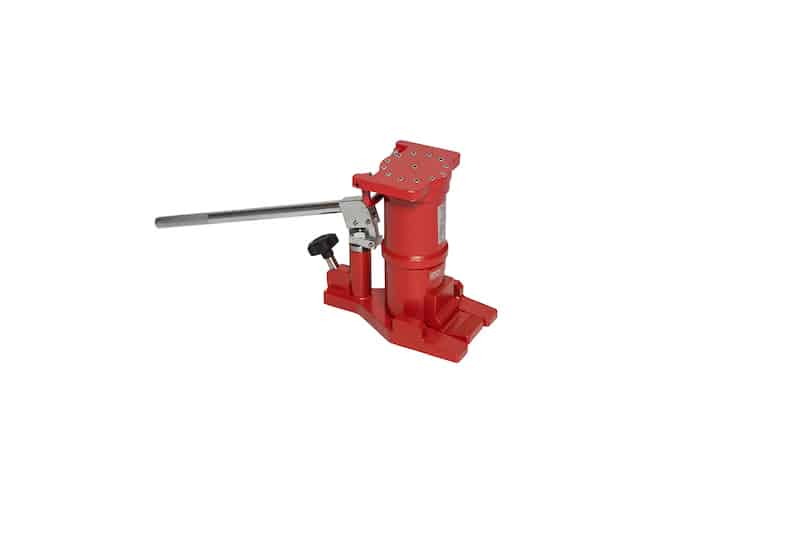

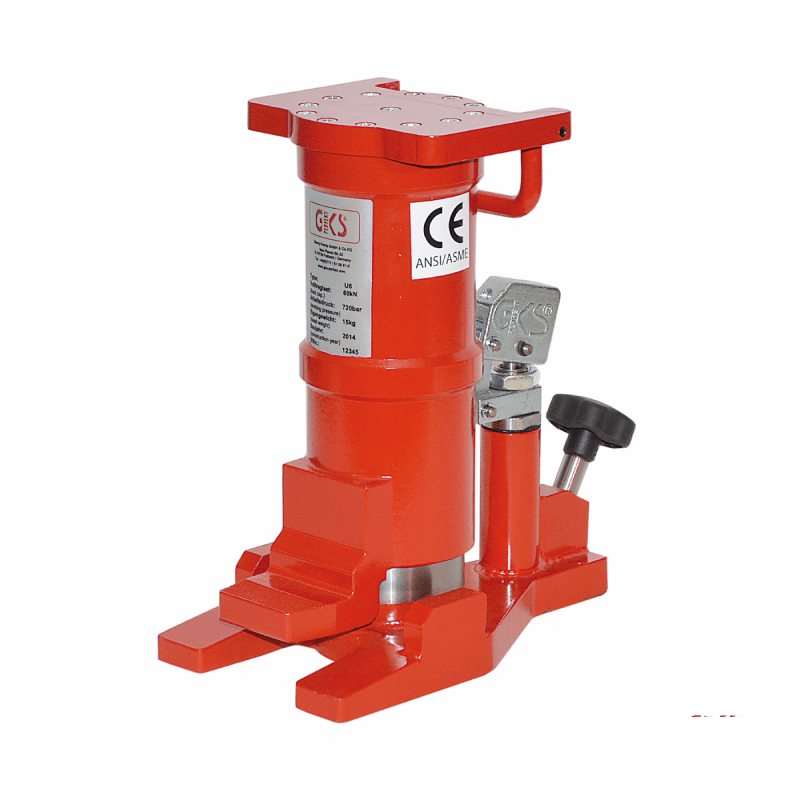

U6 Universal Jack

For horizontal and vertical lifting applications

$1,507.00

In stock

Additional information

Weight33 lbs
Dimensions10.5 × 8.4 × 9.9 in
Load Capacity

13,200 lbs (6 t) 60kN

Working Pressure

40,443 psi (720 bar)

Loading Height: Toe Min

0.7" (18 mm)

Lifting height

4.5" (115 mm)

Top Plate LxW

10.4" (265 mm)

Loading Height

Top plate 10.4" (265 mm)

Dimensions LxWxH

12 x 5.7 x 10.4" (306 x 146 x 265 mm)

Weight with oil

33 lbs. (15 kg)

Key Features

  • Able to be utilized both vertically and horizontally
  • Lightweight for mobile applications
  • Same capacity on the toe and the head
  • 5 year warranty

The GKS-PERFEKT Unilifter U6 is an all-purpose toe jack for vertical and horizontal use. Due to its shape, the jack will not tilt when used in horizontal position.

The ruggedly designed Unilifter U6 provides outstanding safety and stability, as all components are welded together to form a single, solid module. The jack’s low weight makes it an ideal solution for use in remote areas for applications such as track lifting for maintenance of lift trucks or similar vehicles, as well as rigging and heavy hauling.

Made for indoor and outdoor use in factories and workshops, the U6 lifts up to 13,200 pounds. The Unilifter’s toe and top plate are engineered to support the full load capacity. And the unit, covered by a five-year warranty, is designed for optimal safety and performance. The U6’s extended reinforced safety toe features toothing to prevent loads from slipping off.

A release valve is included to support precise and sensitive lowering, while the unit’s safety valve prevents overloading.

All GKS-PERFEKT jacks are also available in a nickel-plated version for use in clean rooms. For more information about the nickel-plated option, please contact us online or call us at 937.324.8867.

The Unilifter U6 jack, like all GKS-PERFEKT jacks and dollies, must pass rigorous quality tests before we ship them to customers. Each jack comes with a test report and a label that indicates the date of its next inspection.
