SKU: 3-14242 Category: Robot

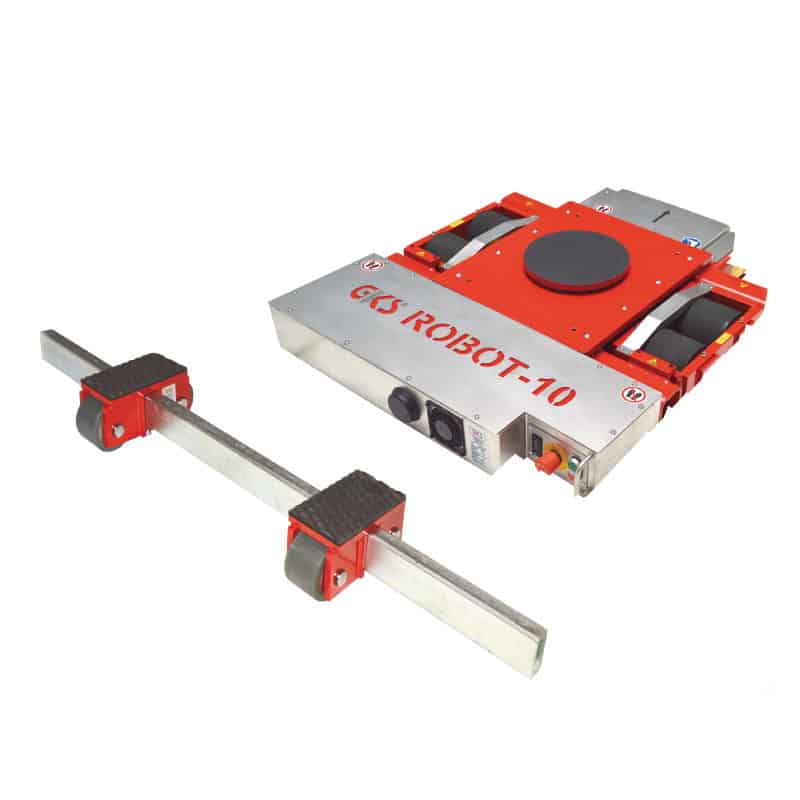

ROBOT 10

Our battery-powered industrial dolly system.

$44,500.00

How to Use a GKS Robot

Why Buy a GKS Robot?

Additional information

Weight690 lbs
Load Capacity

22,000 lbs. (10 t) 100kN

Drive

2 DC Motor (24 V / 930 W)

Battery Type

Li-Lonen

Battery Life

4-6 hours

Speed

Min: 20 ft/min Max: 36 ft/min

Incline Max**

5%

Loading Height

7.1" (180 mm)

Roller Amount

8

Roller Size

85x85mm

L-ROBOT Dimensions (L x W x H)

39.1 x 33.2 x 7.1" /
992 x 842 x 180 mm

F-ROBOT Dimensions (L x W x H)

11 x 63 x 7.1" /
280 x 1600 x 180 mm

Contact surface L-ROBOT

9.8" / 250 mm

Contact Surface / Cassette

8.6 – 10.8" / 25 x 275 mm

Connecting Bar, Adjustable

1.4' – 5.3' (440 – 1600 mm)

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

F Dolly Weight

243 lbs. / 100 kg

L-ROBOT Weight

529 lbs. / 240 kg

Key Features

  • Powered by a long-lasting lithium-polymer battery
  • Remote control that allows for both simultaneous steering and driving
  • Can move up to 36 ft/min
  • Loading height of 7.1″
  • 2 year/900 hour warranty

Competitive Edge

  • No cords to deal with
  • No exhaust from propane- able to be used more places
  • Remote control allows you to be your own spotter
  • Less manpower needed to move the load
  • No need for a towing device
  • Straight line driving function to keep ROBOT moving perfectly straight
  • Optional: Lift table to lift the load directly from the ROBOT

The Robot 10 is our latest success in our Robot series. GKS Robots are battery-powered dolly systems that allow for easy movement of heavy equipment or machinery throughout a facility or assembly line. The new Robot 10, remote-control dolly unit, is quick, agile, and more independent than all its predecessors.

FEATURES OF THE ROBOT 10

The Robot 10 offers double the speed in both slow and fast modes than that of the Robot 20 or Robot 40 while maintaining a minimum run time of 90 -120 minutes. One of the newest features of the Robot 10 is an integrated synchronous running mode allowing the Robot 10 to travel in a straight line without the need for correction by the operator.

We have Robot 10 units available for demonstration and are happy to discuss all projects and applications. If you would like to discuss your motorized dolly needs further, please give us a call at 937.324.8867 or contact us online today.
