SKU: 2-10198 Category: Pumps

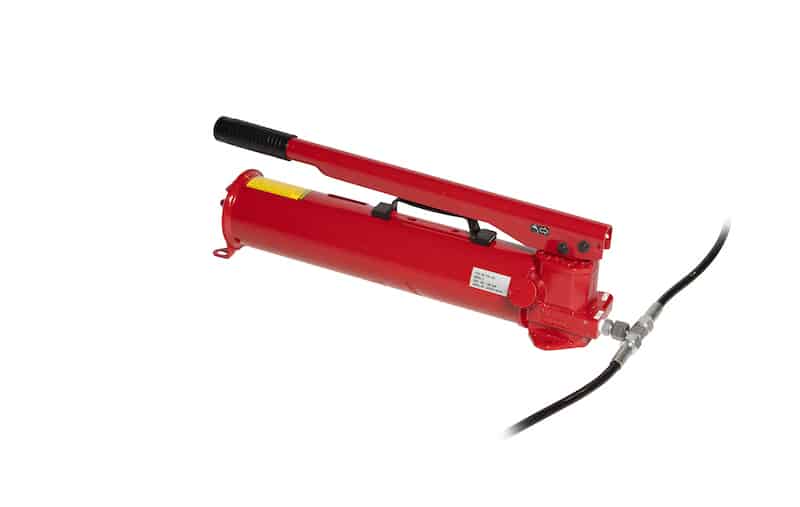

PV Hand Pump

$1,395.00

In stock

Product Spec SheetProduct Catalog

Investing in External Pumps

Additional information

Weight27 lbs
Working Pressure

7,542 psi (520 bar)

Flow rate stage 1 per lift

2.6 cu. in. / 435 psi / 42 cm³ / 30 bar

Flow rate stage 2 per lift

0.16 cu. in / 7,542 psi / 2.6 cm³ / 520 bar

Tank Capacity

0.6 gal / 2.25 l

Overall Dimensions (LxWxH)

25.4 x 5.6 x 6.9" (645 x 143 x 175 mm)

Tare weight incl. oil fill (without hoses)

27 lbs. / 12 kg (incl. oil fill)

Hydraulic hoses (2 m) - with quick-release fastener

2 hoses

For GKS toe jack models

2x V5, V5-EX, V10, V10-EX, V15, V15-EX, G5

Related products

Key Features

  • Allows for lifting 2 of our 5 or 10 ton hydraulic toe jacks simultaneously
  • User can keep a safe distance from the load, reducing potential liability
