How to use GKS transport dollies
Additional information
| Weight | 640 lbs (290 kg) |
|---|---|
| Load Capacity | 132,000 lbs (60 t) /600kN |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 24 |
| Contact Surface / Cassette | 15.4 x 17.2" (390 x 440 mm) |
| Connecting Bar, Adjustable | 43.3 x 107.5" (1100 – 2730 mm) |
| Overall Dimensions (L x W) | 15.2 x 94.9" / |
Additional information
| Weight | 959 lbs. / 435 kg |
|---|---|
| Load Capacity | 132,000 lbs (60 t) /600kN |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 24 |
| Swivel Plate / Steering Angle | ∅ 13.4" (340 mm) / ± 90° |
| Steering Handlebar | 63.8" (1620 mm) |
| Overall dimensions (L x W) | 34.1 x 67.4" / |
Key Features
- Low loading height (7.1″)
- Connecting bar with joint to accommodate for uneven surfaces
- Width is adjustable based on the load
- Durable, non-marking rollers
- 5 year warranty
Competitive Edge
- Thick, grooved rubber pads to prevent load slippage
- Simplified Design—less parts, less problems
- Next day lead time

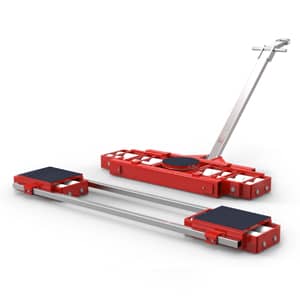

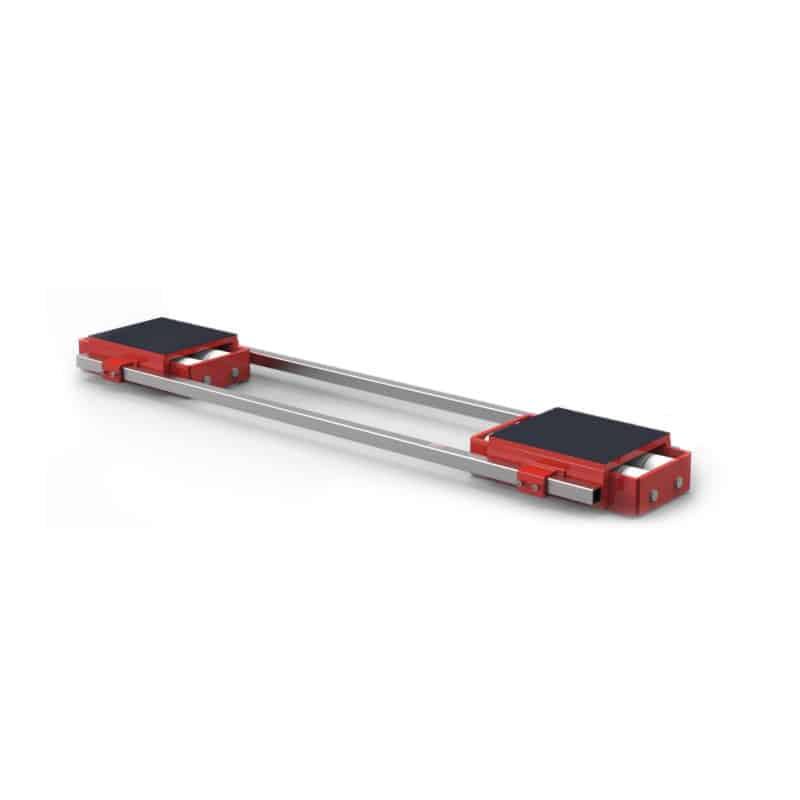

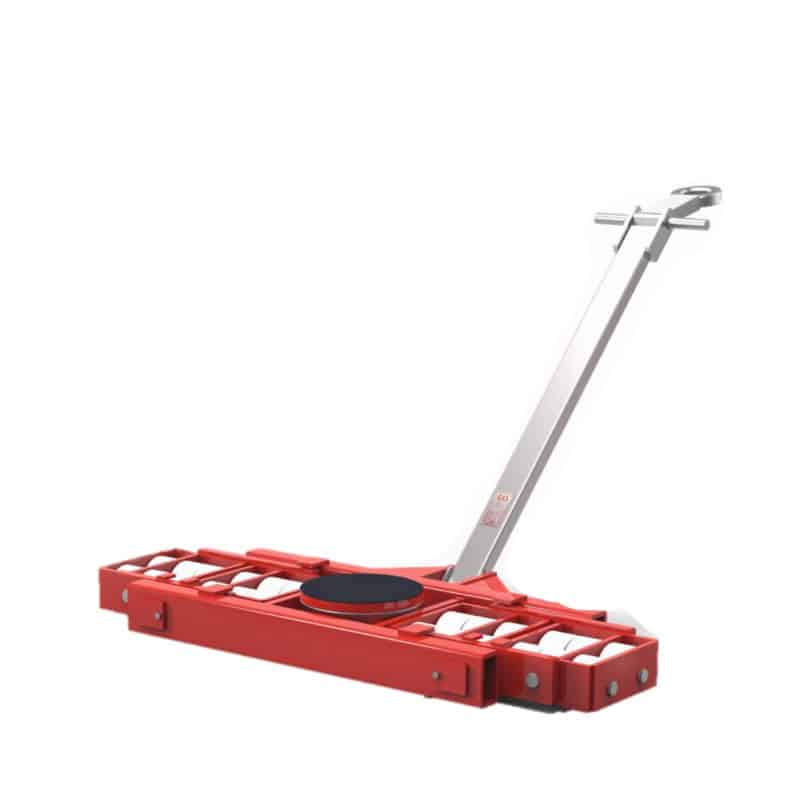

The F60 and L60 Machine Skates are a 3-point dolly pairing designed to facilitate safe, stable, and easy moves in a wide range of settings - manufacturing, rigging, construction, military, and government. The F60 dolly is a straight-line skate set in the rear of the load with an adjustable connecting bar. The L60 offers a turning plate and handlbar for pulling and steering. This heavy capacity dolly pairing can transport loads up to 264,000lbs (120 metric tons combined, 60 metric tons for each F60 and L60). The three-point skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offer a loading height of 7.1in (180mm). The F or L Machine Skates can also be paired with GKS Tandem TL Skates. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our Transport Skates meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business's needs. Request a quote or call us direct at (937)863-9075.
