| Weight | 60 lbs. (30 kg) |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 8 |
| Contact Surface / Cassette | 7.9 x 8.7" (200 x 220mm) |
| Connecting Bar, Adjustable | 25.2 – 40.6" (640 – 1030 mm) |
| Overall dimensions (L x W) | 7.9 x 40.6" (200 x 1030 mm) |
| Weight | 120 lbs. / 54 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 8 |
| Two Swivel Plates / Steering Angle | ∅ 6.7" (170 mm) / ± 50° |
| Overall Dimensions (L x W) | 22.8 x 47.2" / |
| Connecting Bar, Adjustable | 21.7 – 45.3" / 550 x 1150 mm |
| Steering Handlebar | 37.8" (960 mm) |
| Position Points | 7 |
| Weight | 60 lbs. (30 kg) |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 8 |
| Contact Surface / Cassette | 7.9 x 8.7" (200 x 220mm) |
| Connecting Bar, Adjustable | 25.2 – 40.6" (640 – 1030 mm) |
| Overall dimensions (L x W) | 7.9 x 40.6" (200 x 1030 mm) |

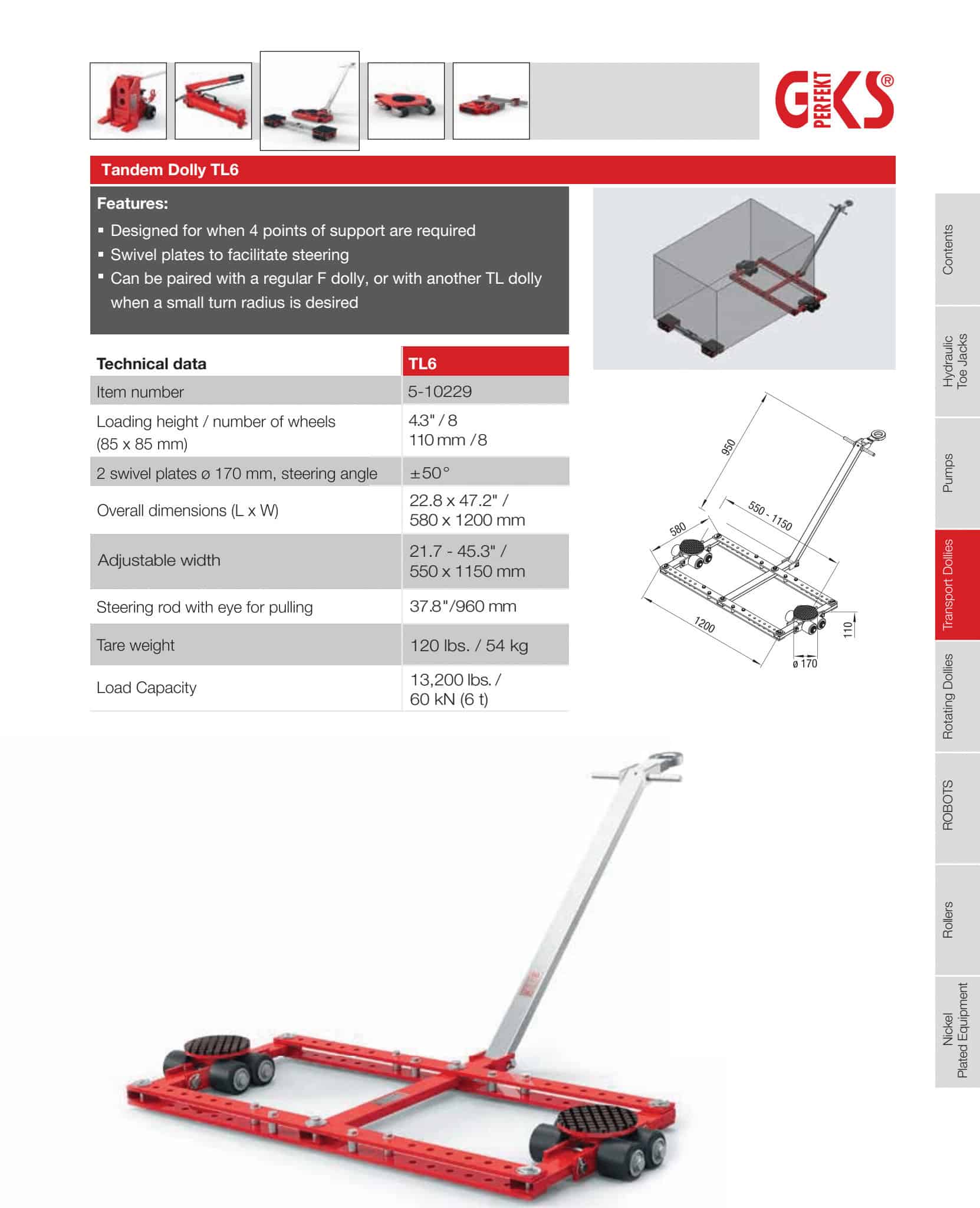

| Weight | 120 lbs. / 54 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 8 |
| Two Swivel Plates / Steering Angle | ∅ 6.7" (170 mm) / ± 50° |
| Overall Dimensions (L x W) | 22.8 x 47.2" / |
| Connecting Bar, Adjustable | 21.7 – 45.3" / 550 x 1150 mm |
| Steering Handlebar | 37.8" (960 mm) |
| Position Points | 7 |

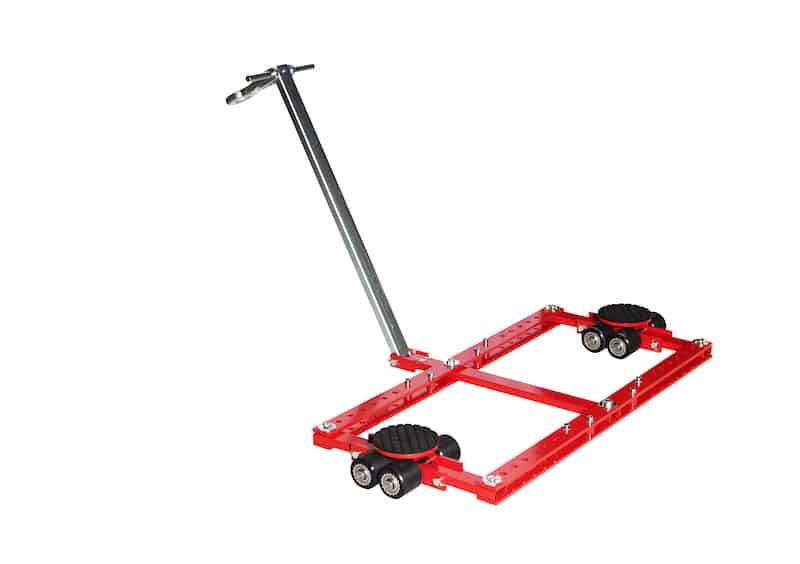

Invest in a safer way to move heavy loads! The F6 and TL6 Transport Dolly is a 4-point machine skate pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F6 machine skate is a straight-line skate set in the rear of the load with an adjustable connecting bar. The TL6 offers two turning plates and handlebar for pulling and steering. This mid-size dolly pairing can transport loads up to 26,400lbs (12 metric tons, 6 metric tons for each F6 and TL6). The four-point machine skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a low loading height of 4.3in (110mm). A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our Industrial Tandem Dollies have been tested to meet our high quality standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business’s needs. request a quote or call us direct at (937)863-9075.
