| Weight | 121 lbs (55kg) |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 16 |
| Contact Surface / Cassette | 7.9 x 16" (200 x 407 mm) |
| Connecting Bar, Adjustable | 39.9 – 56.3" (1014 – 1430 mm) |
| Overall dimensions (L x W) | 7.9 x 56.3" / 200 x 1430 mm |
| Weight | 232 lbs. / 105 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 16 |
| 2 Swivel Plates / Steering Angle | ∅ 6.7" (170 mm) / ± 40° |
| Overall Dimensions (L x W) | 63.4 x 27.8" / |
| Connecting Bar, Adjustable | 26 – 39.4" (660 – 1000 mm) |
| Steering Handlebar | 42.5" (1080 mm) |
| Position Points | 3 |
| Weight | 121 lbs (55kg) |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 16 |
| Contact Surface / Cassette | 7.9 x 16" (200 x 407 mm) |
| Connecting Bar, Adjustable | 39.9 – 56.3" (1014 – 1430 mm) |
| Overall dimensions (L x W) | 7.9 x 56.3" / 200 x 1430 mm |
| Weight | 232 lbs. / 105 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (85 x 85 mm) | 4.3" / 16 |
| 2 Swivel Plates / Steering Angle | ∅ 6.7" (170 mm) / ± 40° |
| Overall Dimensions (L x W) | 63.4 x 27.8" / |
| Connecting Bar, Adjustable | 26 – 39.4" (660 – 1000 mm) |
| Steering Handlebar | 42.5" (1080 mm) |
| Position Points | 3 |

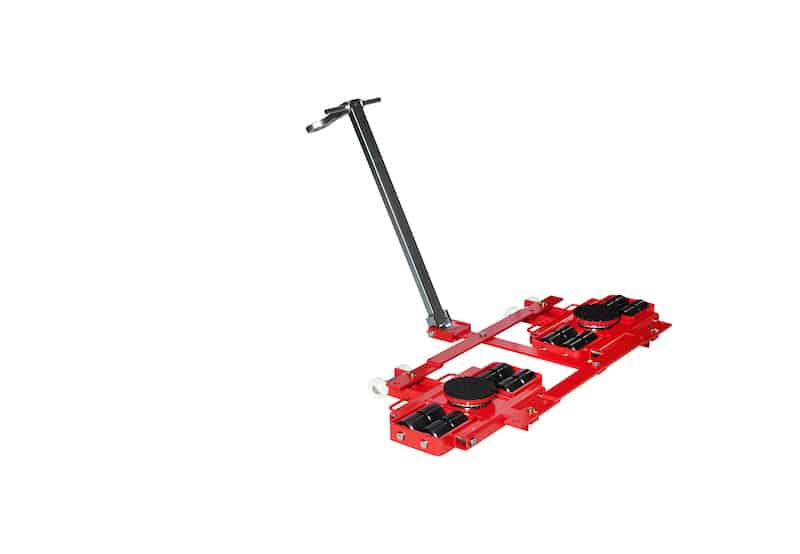

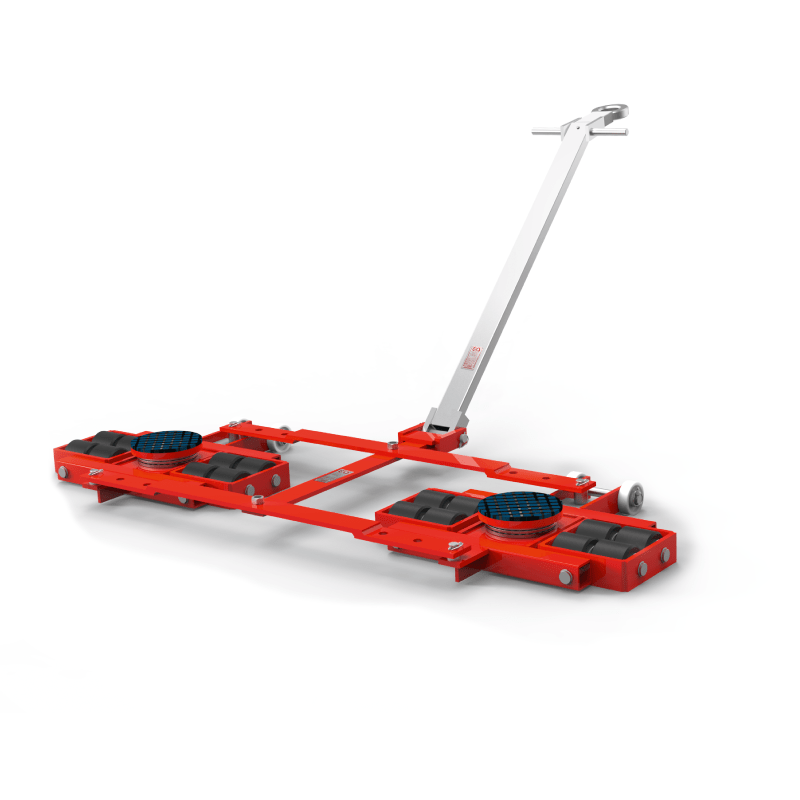

Invest in a safer way to move heavy loads! The F12 and TL12 Transport Skates are a 4-point dolly pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F12 dolly is a straight-line skate set in the rear of the load with an adjustable connecting bar. The TL12 offers two turning plates and handlebar for pulling and steering. This mid-size skate pairing can transport loads up to 52,800lbs (24 metric tons, 12 metric tons for each F12 and TL12). The four-point skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a low loading height of 4.3in (110mm). A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our Industrial Tandem Dollies meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business’s needs. Requet a quote or call us direct at (937)863-9075.
