| Weight | 282 lbs. / 128 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 12 |
| Contact Surface / Cassette | 11.3 x 11.8" (288 x 300 mm) |
| Connecting Bar, Adjustable | 25.6 – 72" (650 – 1830 mm) |
| Overall dimensions (L x W) | 11.8 x 58.7" / 300 x 1490 mm |
| Weight | 472 lbs. / 214 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 12 |
| Swivel Plate / Steering Angle | ∅ 9.8" (250 mm) / ± 90° |
| Steering rod | 63.8" / 1620 mm |
| Overall dimensions (L x W) | 32.3 x 37.4" / 820 x 950 mm |
| Weight | 282 lbs. / 128 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 12 |
| Contact Surface / Cassette | 11.3 x 11.8" (288 x 300 mm) |
| Connecting Bar, Adjustable | 25.6 – 72" (650 – 1830 mm) |
| Overall dimensions (L x W) | 11.8 x 58.7" / 300 x 1490 mm |
| Weight | 472 lbs. / 214 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 12 |
| Swivel Plate / Steering Angle | ∅ 9.8" (250 mm) / ± 90° |
| Steering rod | 63.8" / 1620 mm |
| Overall dimensions (L x W) | 32.3 x 37.4" / 820 x 950 mm |

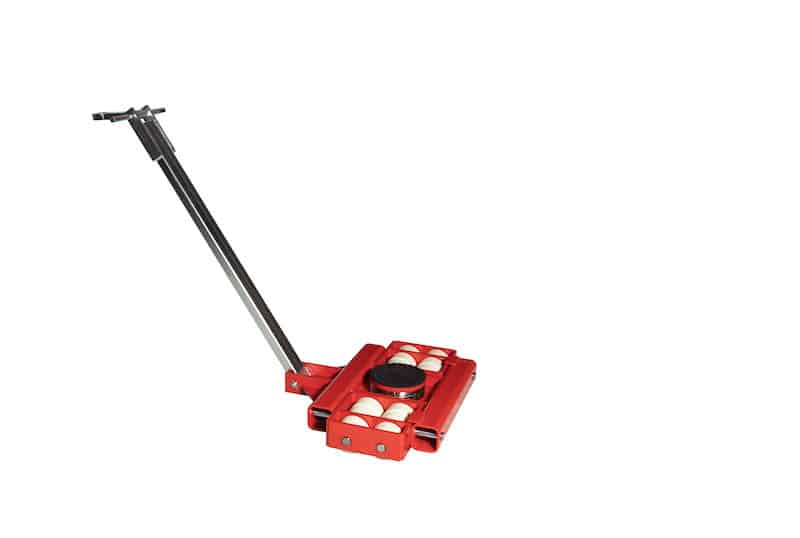

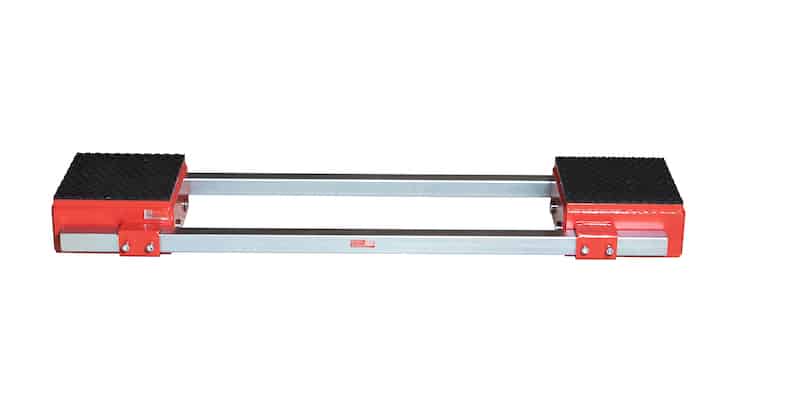

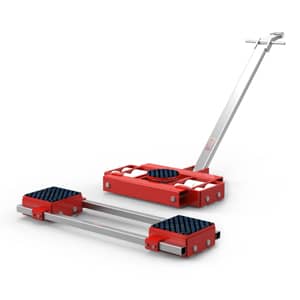

The F30 and L30 Machine Skates are a 3-point dolly pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F30 skate is a straight-line skate set in the rear of the load with an adjustable connecting bar. The L30 offers a turning plate and handlebar for pulling and steering. This heavy capacity dolly pairing can transport loads up to 132,000lbs (60 metric tons, 30 metric tons for each F30 and L30). The three-point dolly system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a loading height of 7.1in (180mm). The F or L transport skates can also be paired with GKS Tandem TL Skates. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our Transport Skates meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business’s needs. Request a quote or call us direct at (937)863-9075.
