Item No: 7-13764 Category Robot

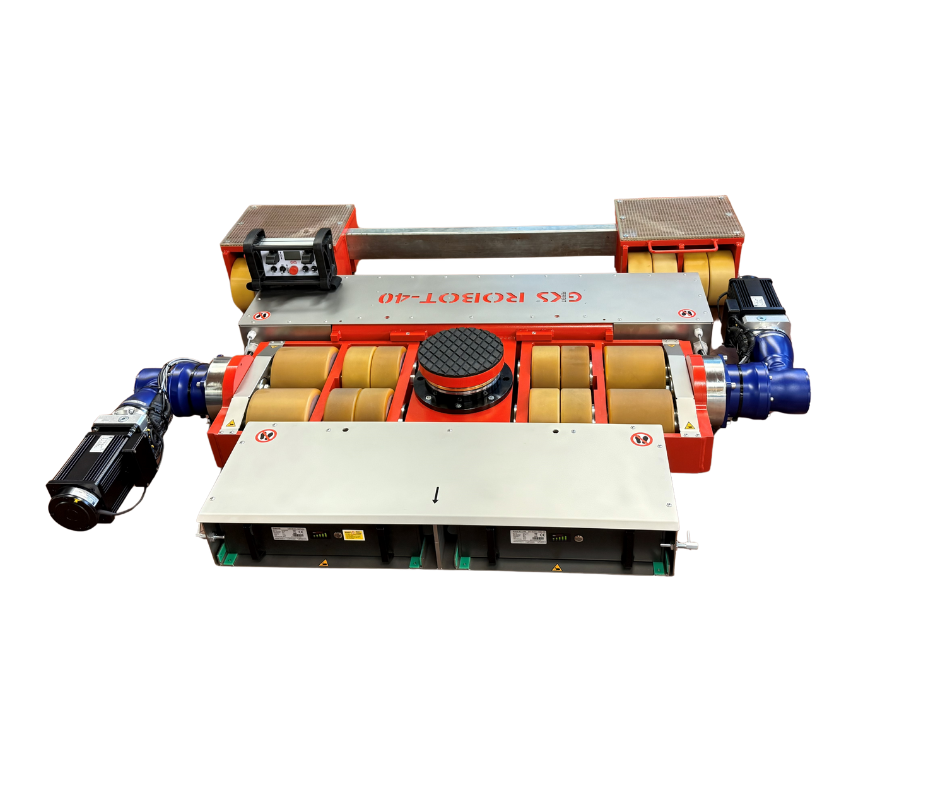

ROBOT 40 Lift

Our battery-powered industrial dolly system.

$99,500.00

In stock

How to Use a GKS Robot

Weight	950 lbs
Load Capacity	88,000 lbs (40 t)
Lifting Capacity	44,000lbs (20 metric tons)
Lift Height	40mm
Drive	DC Motor (24 V/ 1.5 kw)
Battery Type	Li-Lonen
Battery Life	4-6 hours
Speed	Min: 10ft/min Max: 20ft/min
Incline max**	3%
Number of special heavy -duty wheels L-ROBOT	4(drive) + 8(Supporting) (6"/3"/154 + 76 mm wide)
Number of special heavy-duty wheels F-ROBOT	16 (3" / 76 mm wide)
L-ROBOT Dimensions (L x W x H)	45.4 x 68.8 x 9.8" / 1153 x 1748 x 250 mm
F-ROBOT Dimensions (L x W x H)	17.6 x 63 x 9.8" / 447 x 1600 x 250 mm
Contact Surface L-ROBOT	12.5 x 12.5" / 320 x 320 mm
Contact Surface / Cassette	12.2 – 15" / 310 x 379 mm
Connecting Bar, Adjustable	1.4' – 5.3' (440 – 1600 mm)
L Dolly Weight	1022 lbs. / 460 kg
F Dolly Weight	311 lbs. / 140 kg

Move heavy loads up to 88,000 lbs./40 tons safely and autonomously with our Remote-Operated Battery-Operated Transport system the GKS ROBOT 40 Speed
Additional lifting table with a lifting height of 40mm allowing you to block and stage loads to be picked up and driven to their next station.
Lithium-Polymer battery technology which allows for autonomous transport without external energy sources (electricity, hydraulics, air)
Clear transport driveway for increased safety (no hydraulic or pneumatic hoses or power cords are blocking the driveway)
Simultaneous steering and driving
Secure positioning of the ROBOT 40 Lift from the distance by the remote control
Battery packs are exchangeable at the front of the dolly during operation
No need for any towing device
Low loading height of 9.8″/250 mm
Max. load capacity is 88,000 lbs./40 tons.
For more information call 937.324.8867 today!

Capacity: 88,000 lbs (40 t)

$99,500.00

In stock

Capacity: 101,200 lbs (46 t)

$96,000.00

In stock

Capacity: 44,000 lbs (20 t)

$72,250.00

In stock

Capacity: 22,000 lbs (10 t)

$60,000.00

In stock
