SKU: 3-11060-5-11803 Categories: Industrial Dollies, Transport Dollies

F20/TL20

$3,405.00

In stock

$8,678.00

In stock

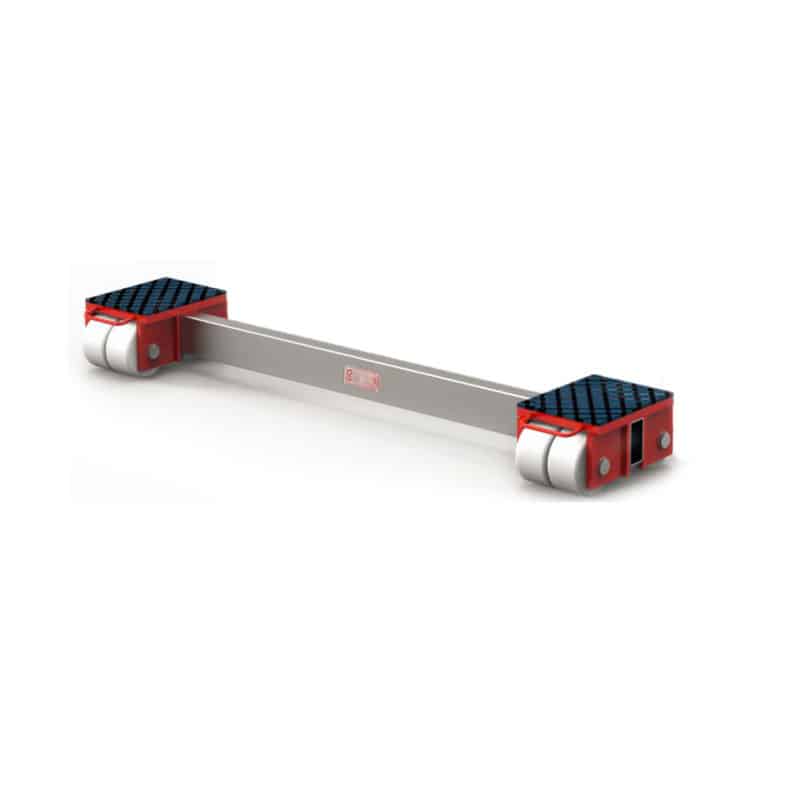

Additional information

Weight

179 lbs. / 81 kg

Load Capacity

44,000 lbs (20 t) 200 Kn

Loading height / number of wheels (140 x 85 mm)

7.1" / 8
180 mm / 8

Contact Surface / Cassette

11.2 x 8.7" (280 x 220 mm)

Connecting Bar, Adjustable

17.3 – 63" (440 – 1600 mm)

Overall dimensions (L x W)

11 x 63" / 280 x 1600 mm

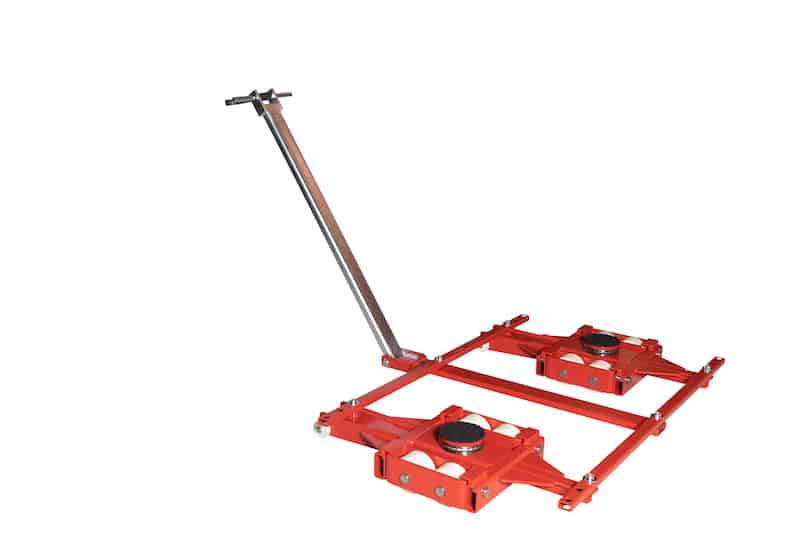

Additional information

Weight

493 lbs. / 222 kg

Load Capacity

44,000 lbs (20 t) 200 Kn

Loading height / number of wheels (140 x 85 mm)

7.1" / 8
180 mm / 8

2 Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 45°

Overall dimensions (L x W)

47.3 x 84.1" / 1202 x 2135 mm

Connecting Bar, Adjustable

49.6 – 63" (1260 – 1600 mm)

Steering Handlebar

63.8" (1620 mm)

Position Points

3

Key Features

  • Low loading height (4.3″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time
