Item No: 5-10230 Category

TL12 Tandem Dolly

$3,840.00

In stock

The pumps you’ll need for your EX jacks

Specifications

Additional information

Weight

232 lbs. / 105 kg
Load Capacity

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16
2 Swivel Plates / Steering Angle

∅ 6.7" (170 mm) / ± 40°
Overall Dimensions (L x W)

63.4 x 27.8" /
1610 x 705 mm
Connecting Bar, Adjustable

26 – 39.4" (660 – 1000 mm)
Steering Handlebar

42.5" (1080 mm)
Position Points

3

Description

GKS Transport Dolly Tandem TL12 Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 26,400 lbs. / 12 t Loading height 4.3″ / 110 mm only. Standard use only as a 4-point-system in combination with the width-adjustable dolly F12 (item # 10312) up to max. 52,800 lbs. / 24 t load capacity. Rollers do not mark floors. Due to the same loading height interchangeable with GKS-Perfekt dollies F3/F6/F9/F18 (item # 10206/10208/11070/10215) or 2 Rotating dollies RL2 or RL4 (item # 10238/10240). Replacement roller: item # 10015.

Accessories

Related Products

TL40 Tandem Dolly
Capacity: 88,000 lbs (40 t)
$11,680.00

In stock

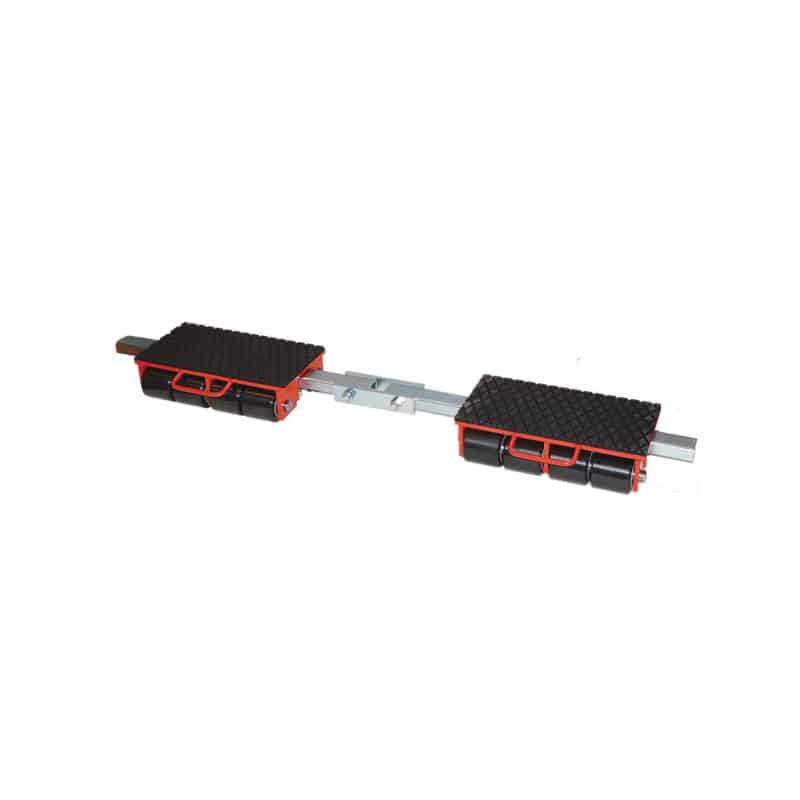

F12 Transport Dolly
