SKU: 1-14022 Categories: Jacks, Toe Jacks with External Hydraulics

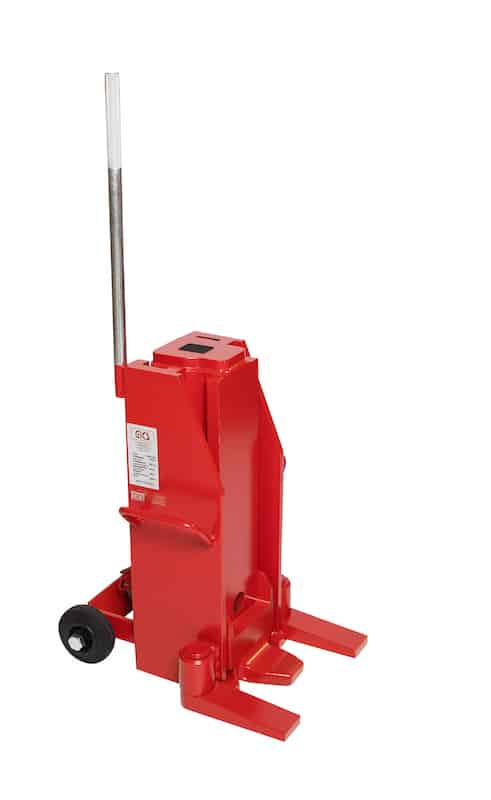

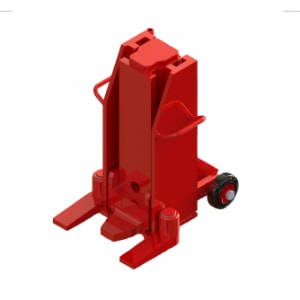

V15-EX 270 Toe Jack with External Hydraulics

For moving large loads through tight spaces.

$4,375.00

In stock

Additional information

Weight 93 lbs
Dimensions 10.5 × 8.4 × 9.9 in
Load Capacity

33,000 lbs (15 t) 150 kN

Working Pressure

7,542 psi (520 bar)

Loading Height: Toe Min

Toe min 1" (25 mm)

Lifting height

10.6" (270 mm)

Lift Toe Positions

2

Loading height

Top plate 20.4" (518 mm)

Top Plate LxW

3.6 x 3.3" (95 x 88 mm)

Overall dimensions (L x W x H)

14 x 12 x 20.2" (354 x 304 x 514 mm)

Weight

185.2 lbs. (84 kg)

Key Features

  • Specifically designed to lift machines for the GKS ROBOTS without blocking
  • Must use with a hydraulic pump
  • Forged, steel safety toe; which is more durable than cast steel
  • 5-year warranty

Competitive Edge

  •  The higher lifting height means less blocking and less time spent lifting overall
  • Simplified Design—less parts means less problems
  • Next day lead time
  • Jack refurbishment services available

The V15-EX 270 toe jack is a specialty jack meant to lift machines high enough for the ROBOT to be driven underneath without blocking. This is an opportunity to save time and money by making machinery moves more efficient! The V15-EX 270 toe jack is also helpful for our dollies with a 7.1’’ or greater loading height.

GKS-PERFEKT’s series of EX Toe Jacks, made for use with external hydraulic pumps, are the ideal solution for lifting loads in tight spaces or anywhere loads are difficult to access.

Designed without an integrated hydraulic unit, these models are made for remote operation with an external hydraulic pump only.

The EX Toe Jacks are made for indoor and outdoor use in factories and workshops for applications such as rigging, equipment maintenance and heavy hauling.

The toe and top plate are engineered to support the full load capacity. The one-piece, height-adjustable safety toe is covered by a five-year warranty.

EX Toe Jacks are designed for safe, smooth operation. They feature a release valve that enables precise, sensitive lowering and a safety valve for overload protection.

For clean room applications, these toe jacks are available in a nickel-plated version. For more information about the nickel-plated option, please contact us online or call us at 937.324.8867.

As with all GKS-PERFEKT jacks and dollies, EX Toe Jacks must pass rigorous quality testing before they leave our facility. Each jack is delivered with a test report and a label that indicates the date of the product’s next inspection.
