How to Use GKS Container Dollies
Additional information
| Weight | 136lbs (61kg) |
|---|---|
| Load Capacity | 26,400 lbs (12 t) 120kN |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 16 |
| Overall dimensions (L x W) | 10.4 x 118.1" / |
Additional information
| Weight | 344lbs (155kg) |
|---|---|
| Load Capacity | 26,400 lbs (12 t) 120kN |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 16 |
| Overall dimensions (L x W) | 20.9 x 89" / |
| Steering Handlebar | 42.5" (1080 mm) |
Key Features
- Fits standard intermodal (ISO) containers
- Special twist lock feature to stabilize the container onto the dolly
- Durable, non-marking rollers
- Puling handle with tow eye
- 5 year warranty
Competitive Edge
- Wheels boxed in
- Simplified Design—less parts, less problems
- Next day lead time

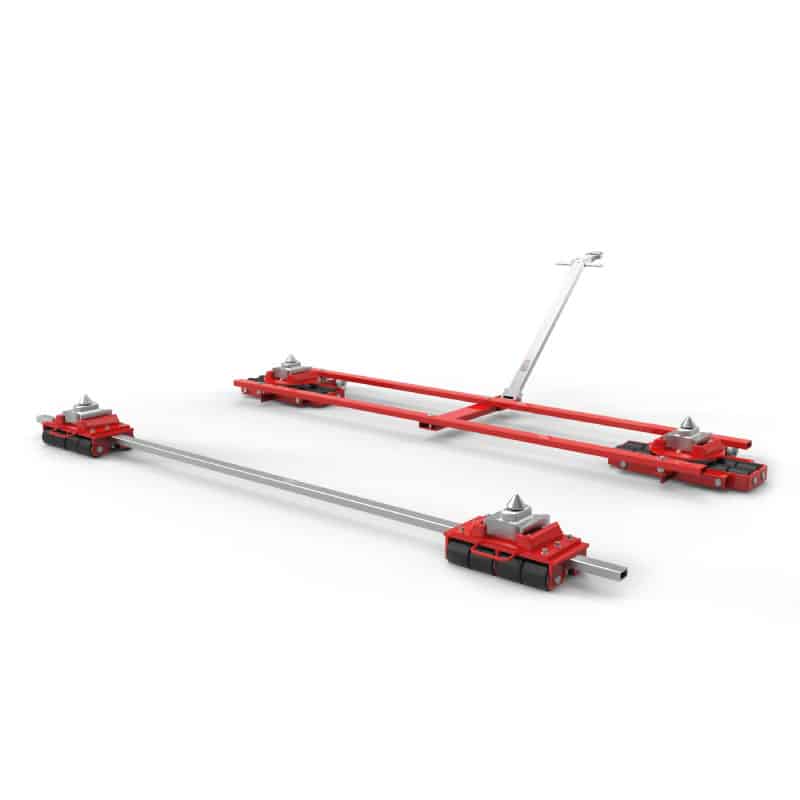

Invest in an easier and safer way to move shipping containers! GKS Container Dollies offer a safe and easy way to move shipping containers inside or outdoors. Our container dollies offer twist locks that fully lock into the corners of ISO shipping containers creating a secure connection.

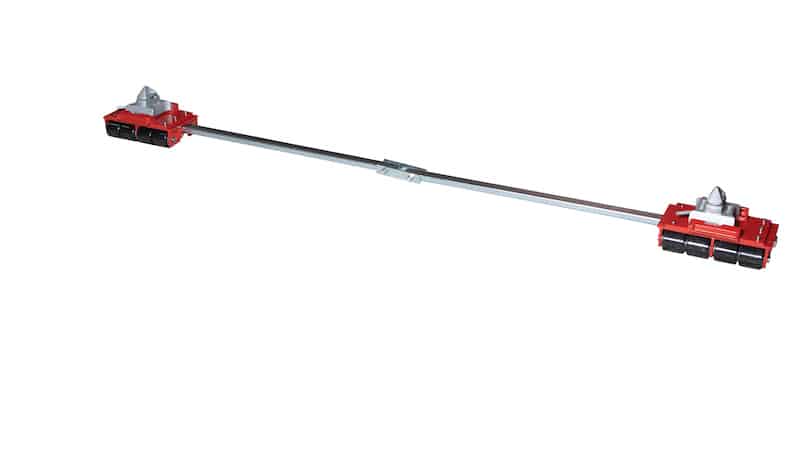

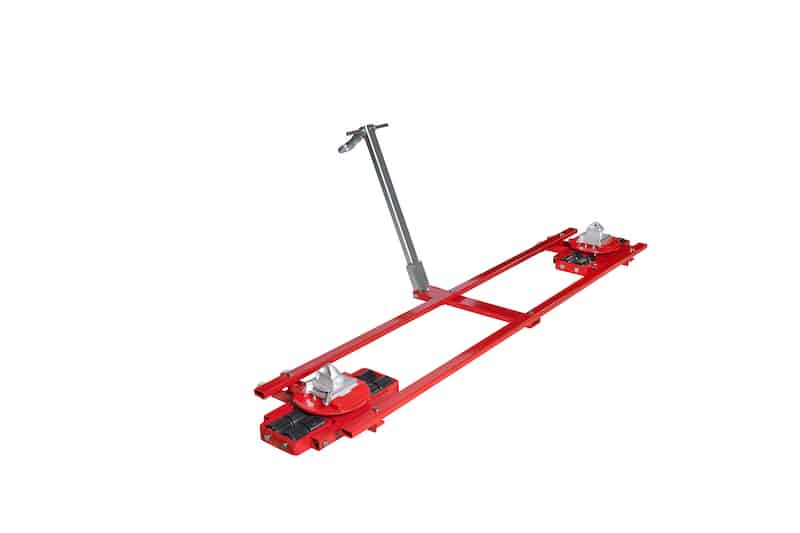

The F12-C straight skates in the rear of the load offer a total capacity of 26,400lbs (12 metric tons). The F12-C's come with a connecting bar to create additional stability. The TL12-C, capacity of 26,400lbs (12 metric tons), offers turning pads at each corner and a handelbar for pulling and steering. Total pairing capacity of the TL12-c and F12-c is 54,800lbs (24 metric tons). These container dolly units offer a loading height of 7in (176mm) and a height when loaded of 6.3in (161mm).
Like all GKS products, our Container Dollies meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business's needs. Requet a quote or call us direct at (937)863-9075.
