SKU: 6-10238 Category: Rotating Machine Skate

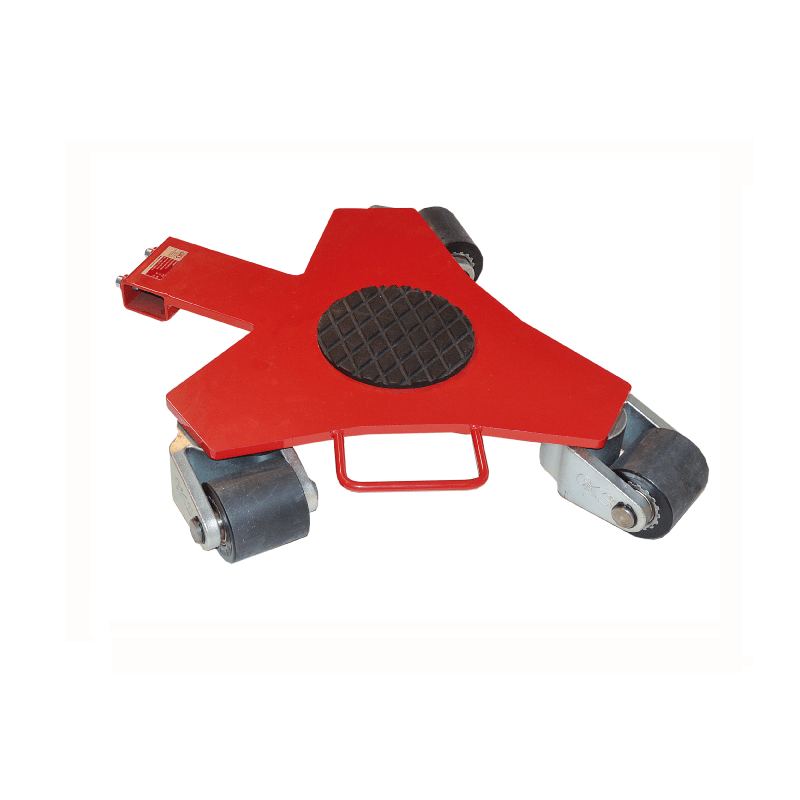

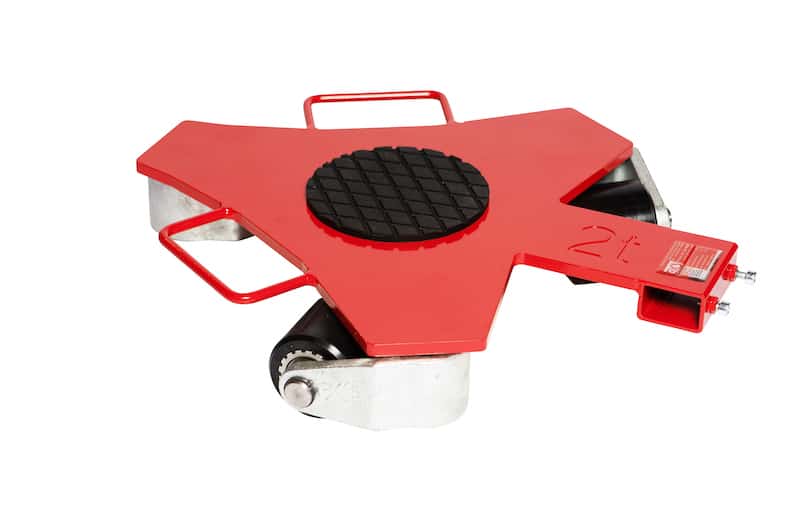

RL2 Rotating Machine Skate

$1,530.00

In stock

Additional information

Weight

66 lbs. / 30 kg

Load Capacity

4,400 lbs (2 t) 20kN

Size of Rubber Pad

āˆ… 6.7" (170 mm)

Loading height / number of wheels (85 x 85 mm)

4.3" / 3
110 mm / 3

Overall Dimensions (L x W x H)

22.3 x 19 x 4.3" /
567 x 483 x 110 mm

HOW TO USE GKS ROTATING DOLLIES

WHY BUY GKS ROTATING DOLLIES?

Key Features

  • 360-degree movement due to special bearings
  • Durable, non-marking rollers
  • Low loading height (4.3″)
  • 5-year warranty

Competitive Edge

  • Simplified design—less parts, less problems
  • Thick, grooved rubber pad to prevent load slippage
  • Next day lead time

Accessories

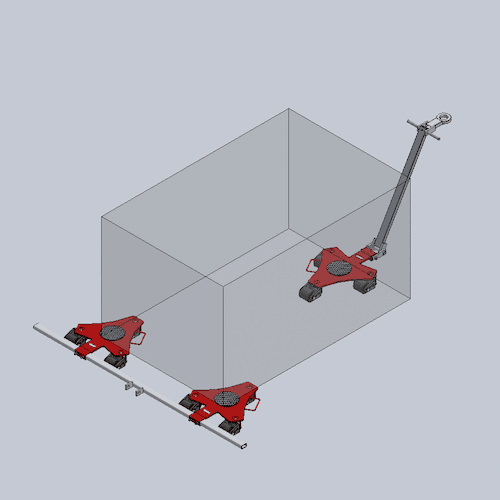

  • 3-Point Rotating Skate System Accessory Kit

    Pick One Connecting Bar Width

    One 1.5 meter (4.9ft) connecting bar

    $259.31 Add to cart

    One 2 meter (6.6ft) connecting bar

    $336.15 Add to cart

    One 2.5 meter (8.2ft) connecting bar

    $403.38 Add to cart

    Pick One Handlebar Length

    One handlebar complete with handle, pulling eye, and coupling 1.08 meter (3.5ft)

    $576.27 Add to cart

    One handlebar complete with handle, pulling eye, and coupling 1.65 meter (5.4ft)

    $726.70 Add to cart

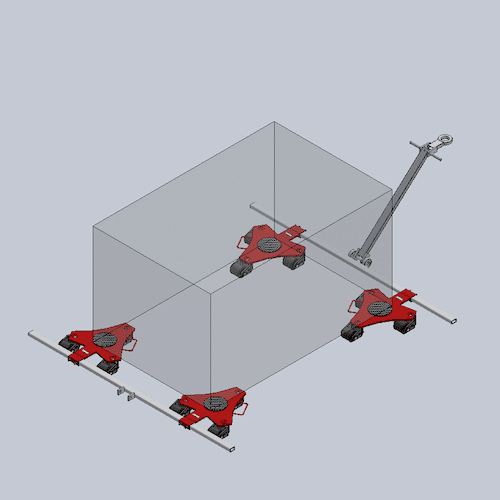

  • 4-Point Rotating Skate System Accessory Kit

    Pick One Connecting Bar Width

    Two 1.5 meter (4.9ft) connecting bars

    $581.62 Add to cart

    Two 2 meter (6.6ft) connecting bars

    $672.30 Add to cart

    Two 2.5 meter (8.2ft) connecting bars

    $806.76 Add to cart

    Pick One Handlebar Length

    One handlebar complete with handle and pulling eye 1.08 meter (3.5ft)

    $374.00 Add to cart

    One handlebar complete with handle and pulling eye 1.65 meter (5.4ft)

    $525.00 Add to cart

Invest in a safer way to move heavy loads with multi-directional skates! Built to transport loads up to 4,400lbs (2 metric tons) per dolly, the RL2 rotating dolly features a unique set of bearings, enabling the dolly to rotate a full 360 degrees. Regardless of the flooring material, the rollers on the RL2 provide low resistance, high stability, and do not scuff or mark floors. Whether you are working in a large space or a compact area, the RL2 rotating machine skate is designed to function in a variety of settings - manufacturing, rigging, construction, military, and government. Its maneuverability and small footprint allows the RLs to move loads in the tightest of spaces, including narrow work areas, confined spaces, and around corners. The RL2 rotating machine skate can be used individually, or in a 2, 3, or 4-point set up. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.

Like all GKS products, the RL2 rotating dolly has been tested to meet our high quality standards and has been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business's needs. request a quote or call us direct at (937)863-9075.
