Item No: 3-11771 Categories ,

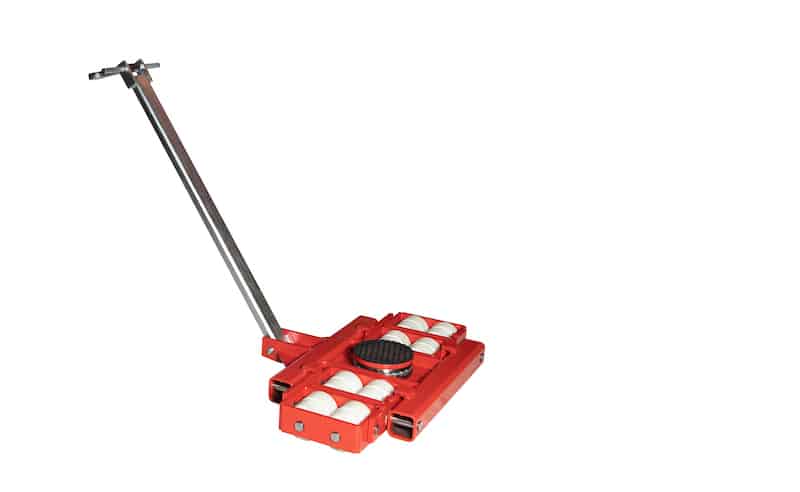

L40 Transport Dolly

Machine Skate
$9,250.00

In stock

How To Use GKS Transport Dollies

Specifications

Additional information

Weight

582 lbs. / 264 kg

Load Capacity

Loading height / number of wheels (140 x 85mm)

7.1" / 16
180 mm / 16

Swivel Plate / Steering Angle

∅ 9.8" (250 mm) / ± 90°

Steering Handlebar

63.8" (1620 mm)

Overall dimensions (L x W)

33.9 x 47.4" / 860 x 1203 mm

Description

GKS Transport Dolly L40 Steerable dolly for the transport of loads up to 88,000 lbs. / 40 t Loading height 7.1″ / 180 mm. Rollers are seated in swiveling cassettes in order to compensate uneven floors. Standard use as a 3-point-system in combination with the width-adjustable dolly F40 (item # 11770) up to max. 176,000 lbs. / 80 t load capacity. Rollers do not mark floors. Due to the same loading height interchangeable with GKS-Perfekt dollies F20/F30/F60 (item # 11060/11992/10226). Replacement roller: item # 10022.
