SKU: 3-11993 Categories: Industrial Dollies, Transport Dollies

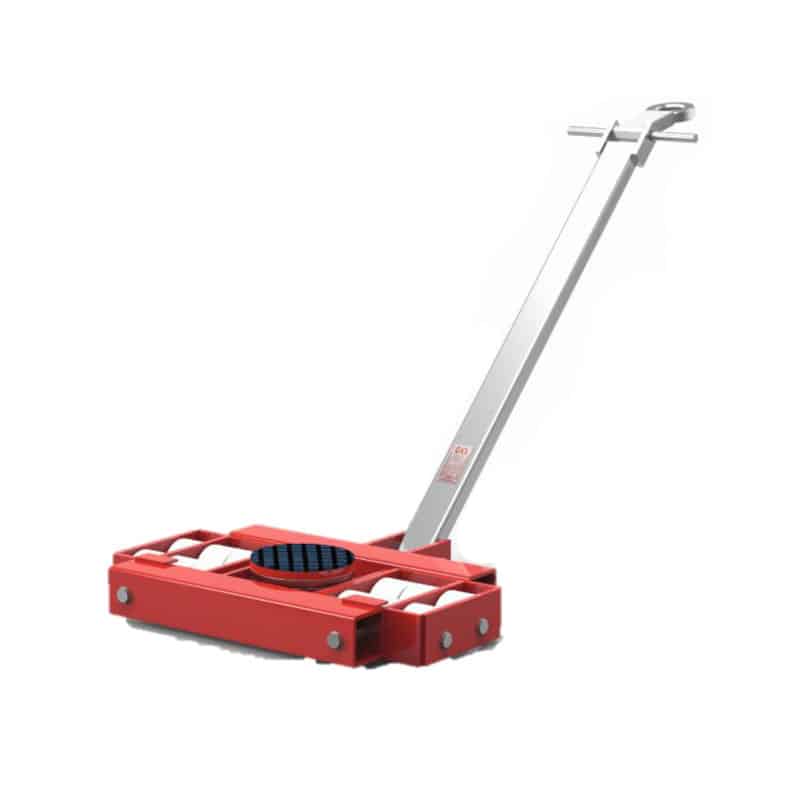

L30 Transport Dolly

Machine Skate

$7,996.00

In stock

How To Use GKS Transport Dollies

Additional information

Weight

472 lbs. / 214 kg

Load Capacity

66,000 lbs (30 t) /300kN

Loading height / number of wheels (140 x 85mm)

7.1" / 12
180 mm / 12

Swivel Plate / Steering Angle

∅ 9.8" (250 mm) / ± 90°

Steering rod

63.8" / 1620 mm

Overall dimensions (L x W)

32.3 x 37.4" / 820 x 950 mm

Key Features

  • Low loading height (7.1″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time

GKS-Perfekt Transport Dolly L30

Steerable dolly for the transport of loads up to 66,000 lbs. / 30 t

Loading height 7.1" / 180 mm.

Rollers are seated in swiveling cassettes in order to compensate for uneven floors.

Standard use as a 3-point-system in combination with the width-adjustable dolly F30 (item # 11992) up to max. 132,000 lbs. / 60 t load capacity.

Rollers do not mark floors.

Due to the same loading height interchangeable with GKS-Perfekt dollies F20/F40/F60 (item # 11060/11770/10226).

Replacement roller: item # 10022.
