SKU: 3-10207 Categories: Industrial Dollies, Transport Dollies

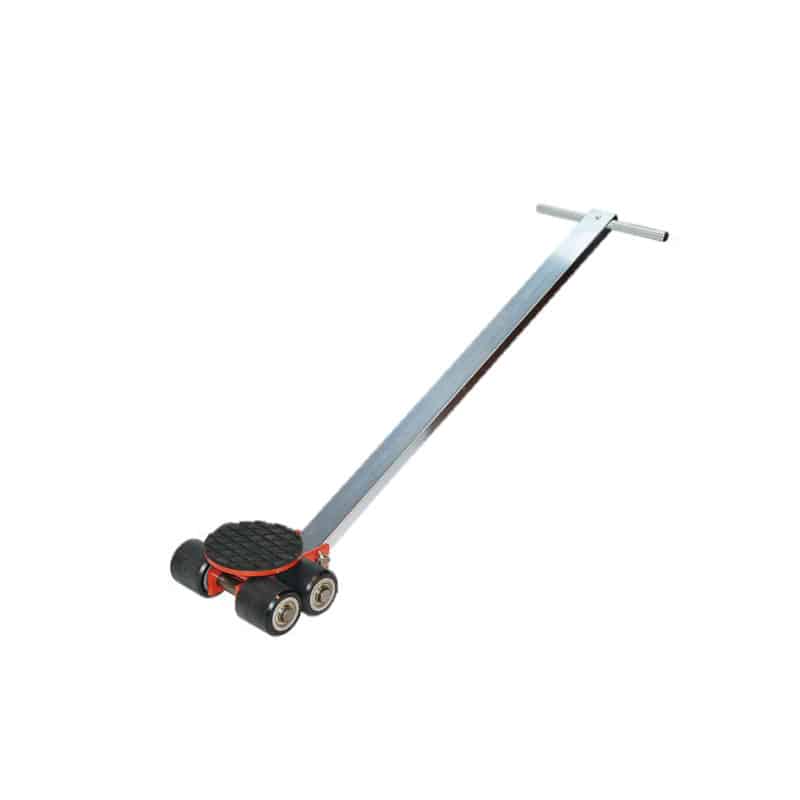

L3 Transport Dolly

Moving Heavy Loads

$552.00

In stock

How to use GKS transport dollies

Additional information

Weight 27 lbs
Load Capacity

6,600 lbs (3 t) 30kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 4
110 mm / 4

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

Steering Handlebar

37.4" (950 mm)

Overall dimensions (L x W)

9.4 x 10.6" (238 x 270 mm)

Weight

27 lbs (12 kg)

Key Features

  •  Low loading height (4.0″)
  • Swivel plate to facilitate steering
  • Pulling handle included with purchase
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • Simplified Design—less parts, less problems
  • Next day lead time

Maneuvering heavy loads around tight corners and spaces can be challenging without the right equipment. Designed for ease of steering and movement, the L3 transport dolly delivers the load control you need.

The GKS Perfekt L3 Transport Dolly serves as part of a three-point moving system for the effortless moving of heavy loads in manufacturing facilities, shops and warehouses. Our L dollies feature a swivel top and tow eye for safe front-steering support. Its small size enables use in tight spaces while still transporting loads up to 6,600 lbs (3 metric tons).

To help you easily move large loads through your facility, the L3 has a loading height of 4.3”/110 mm, which keeps loads close to the ground for a safe, low center of gravity, and greater head clearance. For additional assistance with load transportation, the L3 dolly can be used in combination with the F6F9F12F18RL2, or RL4 dollies to evenly distribute the weight of larger loads. Special rollers on the L3 dolly provide low resistance and high stability, without leaving your floors marked and scuffed.

Like many GKS dollies, the L3 transport dolly is available in a nickel-plated version for use in clean room industry sectors such as chip manufacturing, food processing, pharmaceuticals, and chemical processing. Each GKS dolly has been tested to ensure it meets the high standards of quality and performance of all GKS-Perfekt products, and comes with a five-year limited warranty.

Used in a variety of industrial, manufacturing and warehousing facilities, the L3 transport dolly is ideal for facilities where open floor space is at a premium. If you are interested in the L3 transport dolly from GKS-PERFEKT and would like more information, request a quote, or call 937.324.8867 today to speak with one of our experienced team members.

Ask About this Product

Discover how GKS provides the heavy-duty solutions and comprehensive services you need to get your lifting and transport job done right.
