SKU: 3-10215 Categories: Industrial Dollies, Transport Dollies

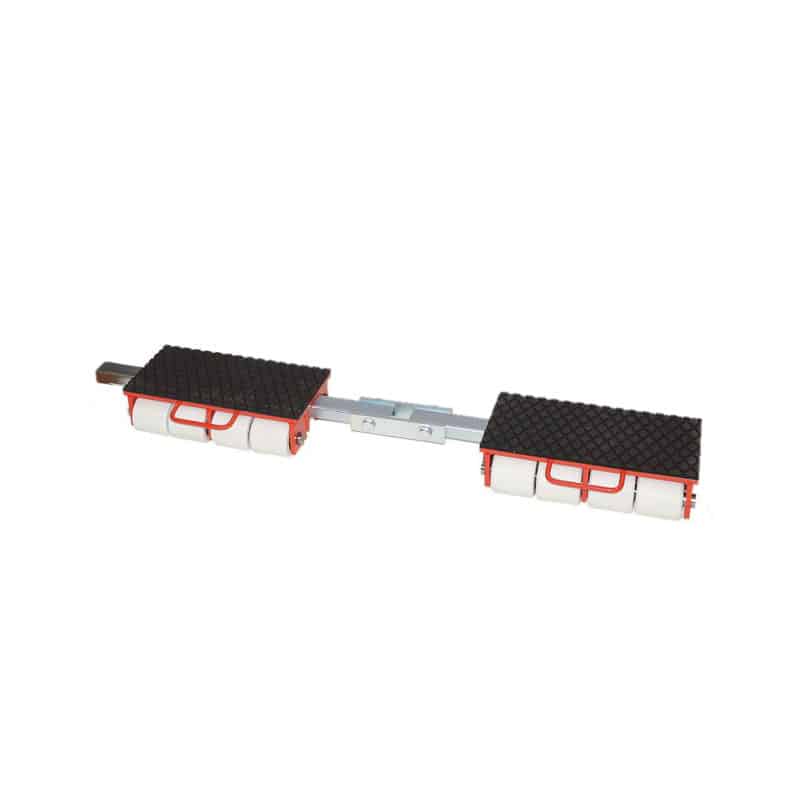

F18 Transport Dolly

Width-Adjustable Transport For Up To 39,600 Pounds

$2,224.00

In stock

How to Use GKS Transport Dollies

Additional information

Weight 121 lbs
Load Capacity

39,600 lbs (18 t) /180kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Contact Surface / Cassette

7.9 x 16" (200 x 407 mm)

Connecting Bar, Adjustable

39.9 – 56.3" (1014 – 1430 mm)

Overall dimensions (L x W)

7.9 x 56.3" / 200 x 1430 mm

Weight

121 lbs (55kg)

Key Features

  • Low loading height (4.3″)
  • Connecting bar with joint to accommodate for uneven surfaces
  • Width is adjustable based on the load
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • Simplified Design—less parts, less problems
  • Next day lead time

The F18 Transport Dolly, when used as the rear-axle of a three-point moving system, provides a consistently effortless ride for loads of up to 18 metric tons. This F-Dolly can serve as the backbone of a no-slip, no-scuff, no-stress system for use in manufacturing facilities, warehouses, and anywhere else heavy loads need to move through tight spaces.

The adjustable connecting bar allows a range of widths from 39.9 inches to 56.3 inches, offering versatility and flexibility when combined with the L18 steerable dolly.  The jointed connecting bar allows smooth, secure transport on uneven facility floors.

The F18 has a loading height of 4.3 inches, making it interchangeable with the L3, L6, L9 and L12 dollies, or it can be adapted for a four-point system with Tandem dollies Tl6 or Tl2, as well as two rotating dollies RL2 or RL4. Combined with our L18 transport dolly, the pair has a load capacity of 79,200 pounds (36 metric tons).

F18 Transport Dollies are available with nickel plating for use in industries with clean rooms, such as pharmaceuticals, microprocessers and food and beverage processing. Both versions, as with all GKS-PERFEKT products, go through a stringent quality assurance process and are protected with a five-year limited warranty. These products are stocked and are typically shipped within one business day.

If you’re interested in receiving a quote for the F18 Width-Adjustable Transport Dolly, or need more assistance building a proper heavy load moving system for your business, call our experienced team at (937) 324-8867.
