SKU: 3-11070 Categories: Industrial Dollies, Transport Dollies

F9 Transport Dolly

Three-Point Moving Systems Make It Easier To Move Heavy loads Through Your Facility


In stock

How to Use GKS Transport Dollies

Additional information


95 lbs. / 43 kg

Load Capacity

19,800 lbs (9 t) 90kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 12
110 mm / 12

Contact Surface / Cassette

12.6 x 7.9" (320 x 200 mm)

Connecting Bar, Adjustable

33 – 48.4" (840 – 1230 mm)

Overall dimensions (L x W)

7.9 x 48.4" / 200 x 1230 mm

Key Features

  • Low loading height (4.3″)
  • Connecting bar with joint to accommodate for uneven surfaces
  • Width is adjustable based on the load
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • Simplified Design—less parts, less problems
  • Next day lead time

Transporting heavy loads through small spaces and around narrow corners is challenging without the right equipment. The F9 Transport Dolly allows you to move loads throughout your facility with ease.

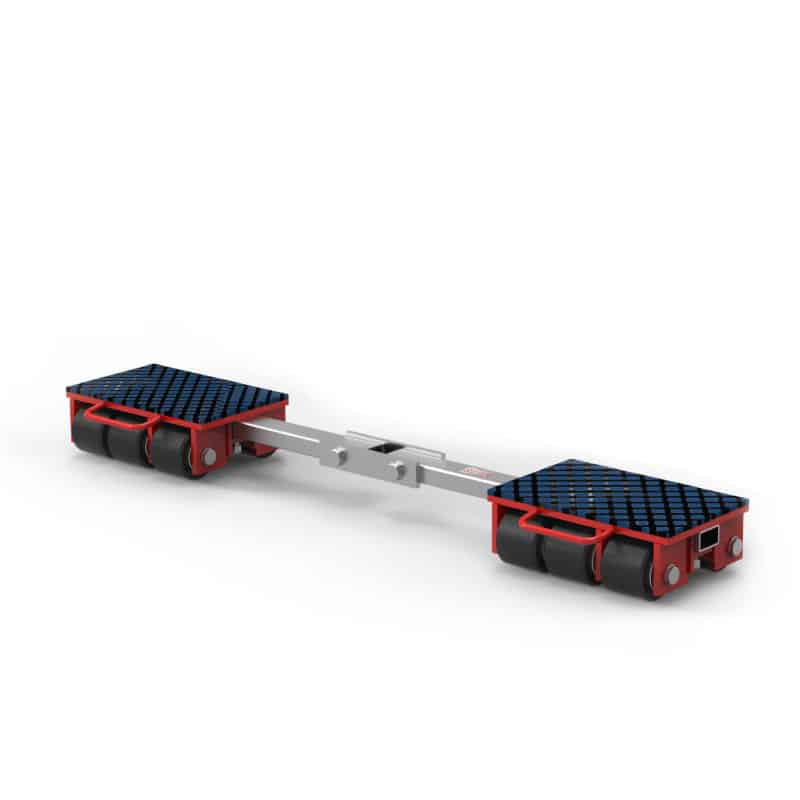

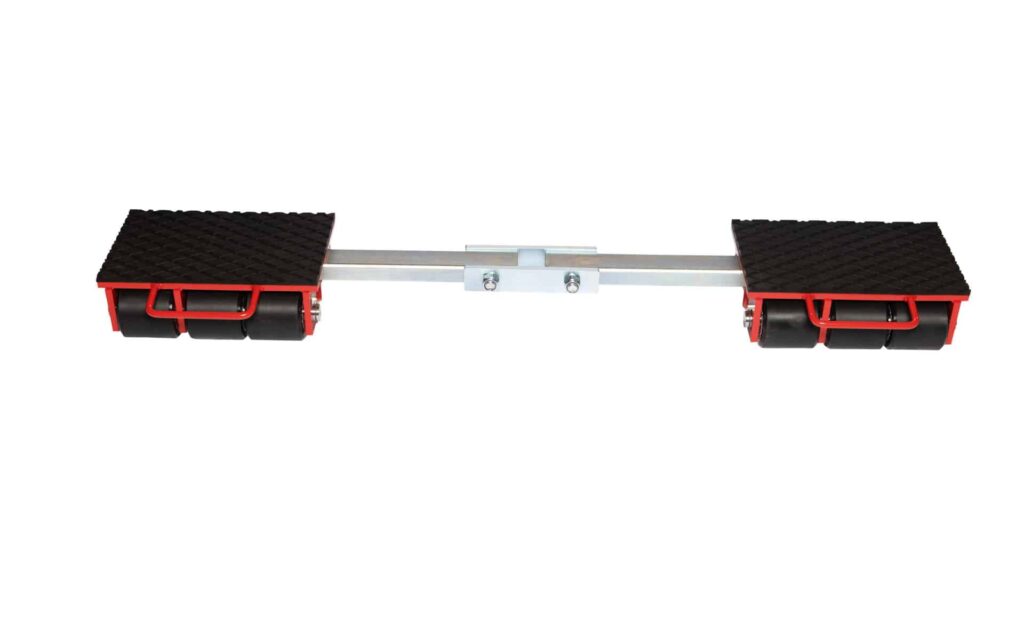

The GKS-Perfekt F9 Transport Dolly serves as the stable rear axle of a three-point, load-moving system. This dolly is built to carry 19,800 lbs (9 metric tons), but when used as a three-point system can carry up to 39,600 lbs. (18 metric tons). This straight-line dolly features a connection bar that can be adjusted to distribute weight and fit under loads of varying widths and sizes. A nickel-plated version is also available for use in food processing, pharmaceutical, and chemical industry clean rooms.

With a fixed loading height of 4.3” / 110 mm, the F9 dolly can be used in combination with the L3L6L12 and L18 GKS-Perfekt Transport Dollies, as a four-point system with the steerable TL6 or TL12 Tandem dollies, or with the rotating RL2 and RL4 dollies. Our dollies ride on special rollers that provide low resistance and high stability, without leaving floors marked or scuffed.

All GKS-Perfekt products come with a five-year limited warranty and have been tested before delivery to meet our high standards of quality and performance.

To learn more about the F9 transport dolly and other transport dollies from GKS-Perfekt, or to request a quote, call 937-324-8867 today to speak with one of our experienced team members
