How to use GKS transport dollies
Additional information
| Weight | 179 lbs. / 81 kg |
|---|---|
| Load Capacity | 44,000 lbs (20 t) 200 Kn |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 8 |
| Contact Surface / Cassette | 11.2 x 8.7" (280 x 220 mm) |
| Connecting Bar, Adjustable | 17.3 – 63" (440 – 1600 mm) |
| Overall dimensions (L x W) | 11 x 63" / 280 x 1600 mm |
Additional information
| Weight | 375 lbs (170 kg) |
|---|---|
| Load Capacity | 44,000 lbs (20 t) 200 Kn |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 8 |
| Swivel Plate / Steering Angle | ∅ 9.8" (250 mm) / ± 90° |
| Steering Handlebar | 63.8" (1620 mm) |
| Overall dimensions (L x W) | 31.5 x 9.4" / 800 x 747 mm |
Key Features
- Low loading height (7.1″)
- Connecting bar with joint to accommodate for uneven surfaces
- Width is adjustable based on the load
- Durable, non-marking rollers
- 5 year warranty
Competitive Edge
- Thick, grooved rubber pads to prevent load slippage
- Simplified Design—less parts, less problems
- Next day lead time

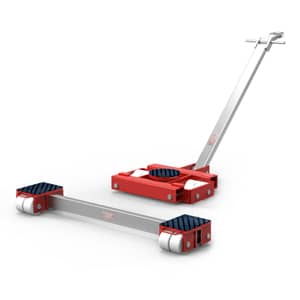

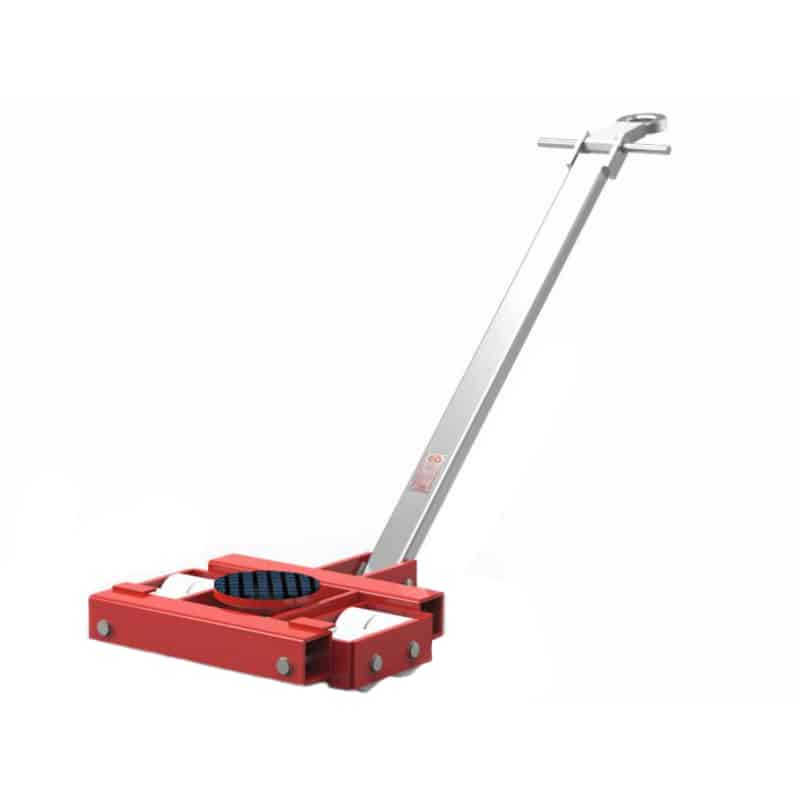

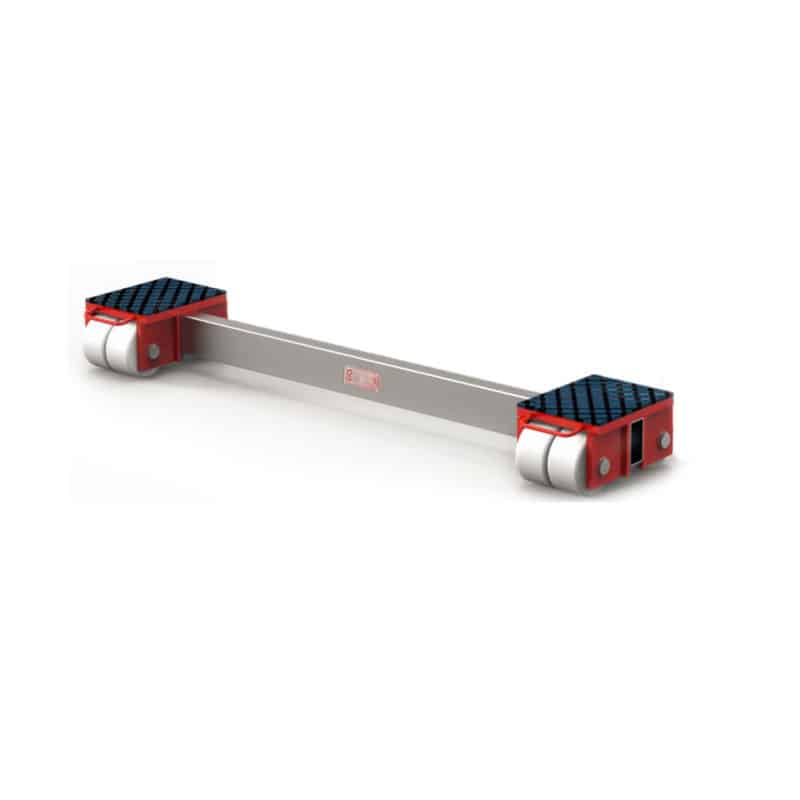

The F20 and L20 Machine Skates are a 3-point skate pairing designed to facilitate safe, stable, and easy moves in a wide range of settings - manufacturing, rigging, construction, military, and government. The F20 machine skate is a straight-line skate set in the rear of the load with an adjustable connecting bar. The L20 offers a turning plate and handlebar for pulling and steering. This heavy capacity skate pairing can transport loads up to 88,000lbs (40 metric tons combined, 20 metric tons for each F20 and L20). The three-point machine skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a loading height of 7.1in (180mm). The F or L transport skates can also be paired with GKS RL rotating skates or GKS Tandem TL skates. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our machine skates meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business's needs. Request a quote or call us direct at (937)863-9075.
