Item No: 5-10229 Category

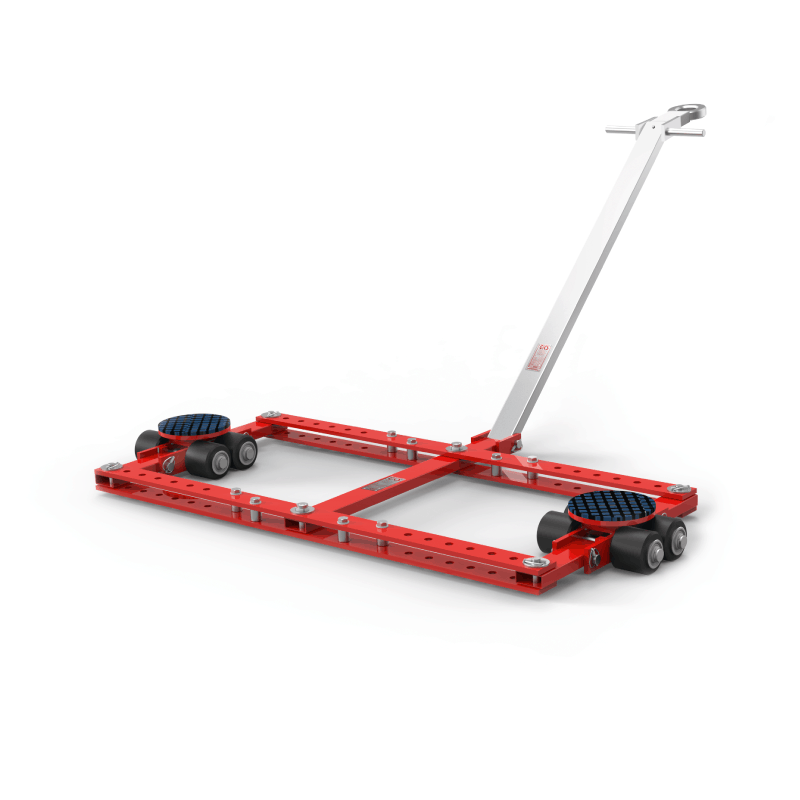

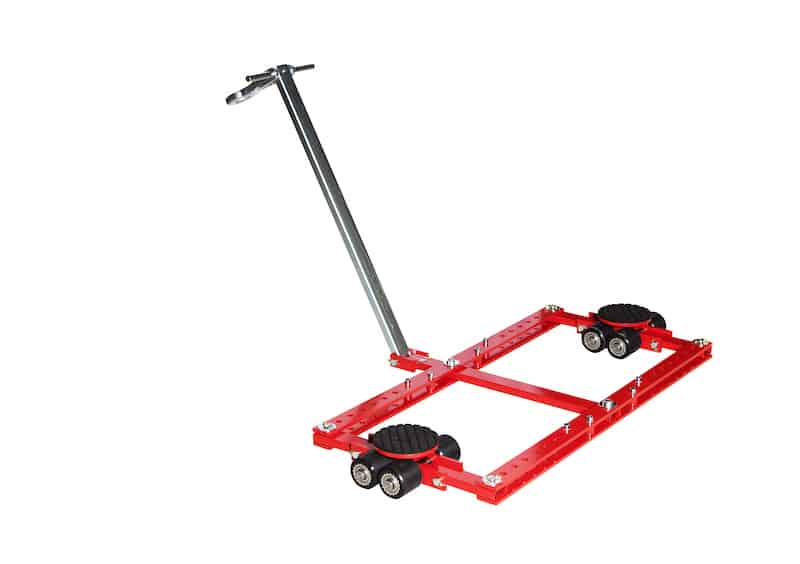

TL6 Tandem Dolly

$1,990.00

In stock

The pumps you’ll need for your EX jacks

Specifications

Additional information

Weight

120 lbs. / 54 kg
Load Capacity

Loading height / number of wheels (85 x 85 mm)

4.3" / 8
110 mm / 8
Two Swivel Plates / Steering Angle

∅ 6.7" (170 mm) / ± 50°
Overall Dimensions (L x W)

22.8 x 47.2" /
580 x 1200 mm
Connecting Bar, Adjustable

21.7 – 45.3" / 550 x 1150 mm
Steering Handlebar

37.8" (960 mm)
Position Points

7

Description

GKS Transport Dolly Tandem TL6 Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 13,200 lbs / 6 t Loading height 4.3 / 110 mm only. Standard use only as a 4-point-system in combination with the width-adjustable dolly F6 (item # 10208) up to max. 26,400 lbs. / 12 t load capacity. Rollers do not mark floors. Due to the same loading height interchangeable with GKS-Perfekt dollies F3/F9/F12/F18 (item # 10206/11070/10312/10215) or 2 Rotating dollies RL2 or RL4 (item # 10238/10240). Replacement roller: item # 10015.
