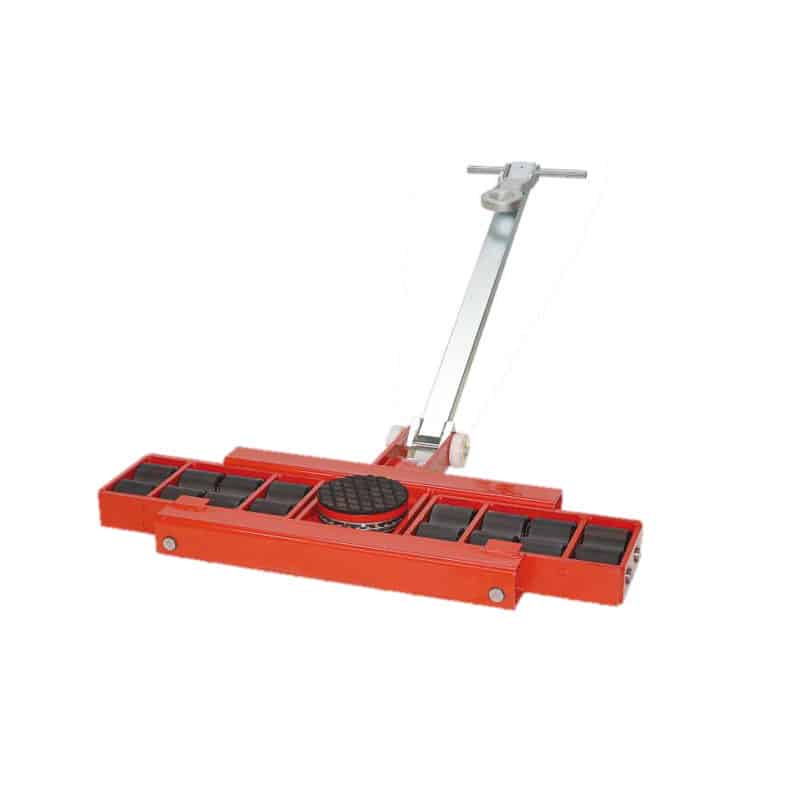

L12 Transport Dolly

Lots Of Strength In Little Space

$2,025.00

In stock

How to Use GKS Transport Dollies

Additional information

Weight 172 lbs
Load Capacity

26,400 lbs (12 t) 120kN

Loading height / number of wheels (85 x 85 mm)

4.3" / 16
110 mm / 16

Swivel Plate / Steering Angle

∅ 6.7" (170 mm) / ± 90°

Steering Handlebar

42.5" (1080 mm)

Overall dimensions (L x W)

24.9 x 40.1" / 633 x 1018 mm

Weight

176 lbs (80 kg)

Key Features

  • Low loading height (4.3″)
  • Swivel plate to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • All wheels are boxed in for dent protection
  • Simplified Design—less parts, less problems
  • Next day lead time

Moving heavy loads any distance in your facility is a serious undertaking with inherent risks. When loads reach an excess of 20,000 pounds (9 metric tons), your staff needs reliable transport equipment. The L12 Transport Dolly from GKS-PERFEKT offers a formidable combination of nimble handling and impressive strength. Moving loads up to 26,400 pounds (12 metric tons) in your warehouse’s most narrow spaces has never been easier.

This dolly features a swiveling top and low center of gravity to give the operator a safe, easy-to-control steering experience. Combined with an F12 width-adjustable dolly to form a three-point moving system that effectively distributes weight, your personnel can transport up to 26,400 pounds (12 metric tons) securely and effectively. The three-point dolly system provides substantial protection from slipping, even with pulling and tugging, without scuffing up floors. Its 16 rollers are replaceable, seated in swiveling cassettes to counteract uneven floors, and allow the very low loading height – just 4.3 inches.

The dolly has a wide variety of applications in typical warehouse and industrial facilities, and GKS-PERFEKT also offers a nickel-plated version for clean room uses, such as electronics, food processing, and chemicals. As with all GKS-PERFEKT products, the L12 Transport Dolly comes with a five-year limited warranty, and each dolly is tested and approved at our factory to ensure it adheres to our high standards.

The team at GKS-PERFEKT is committed to finding you the high-quality load-bearing system that will best meet your business’s needs. Request a quote or call us direct at (937) 324-8867 for more detailed information on the L12, our transport dollies and three-point moving systems from GKS-PERFEKT.
