| Weight | 463 lbs. / 210 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 16 |
| Contact Surface / Cassette | 14.6 x 14.6" (370 x 370 mm) |
| Connecting Bar, Adjustable | 32.3 – 69.3" (820 x 1760 mm) |
| Overall dimensions (L x W) | 15.3 x 58.7" / 389 x 1490 mm |
| Weight | 578 lbs. / 260 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 8 |
| 2 Swivel plates / Steering Angle | ∅ 6.7" (170 mm) / ± 45° |
| Overall Dimensions (L x W) | 47.3 x 91.7" / |
| Connecting Bar, Adjustable | 49.6 – 63" (1260 – 1600 mm) |
| Steering Handlebar | 63.8" (1620 mm) |
| Position Points | 3 |
| Weight | 463 lbs. / 210 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85mm) | 7.1" / 16 |
| Contact Surface / Cassette | 14.6 x 14.6" (370 x 370 mm) |
| Connecting Bar, Adjustable | 32.3 – 69.3" (820 x 1760 mm) |
| Overall dimensions (L x W) | 15.3 x 58.7" / 389 x 1490 mm |
| Weight | 578 lbs. / 260 kg |
|---|---|
| Load Capacity | |
| Loading height / number of wheels (140 x 85 mm) | 7.1" / 8 |
| 2 Swivel plates / Steering Angle | ∅ 6.7" (170 mm) / ± 45° |
| Overall Dimensions (L x W) | 47.3 x 91.7" / |
| Connecting Bar, Adjustable | 49.6 – 63" (1260 – 1600 mm) |
| Steering Handlebar | 63.8" (1620 mm) |
| Position Points | 3 |

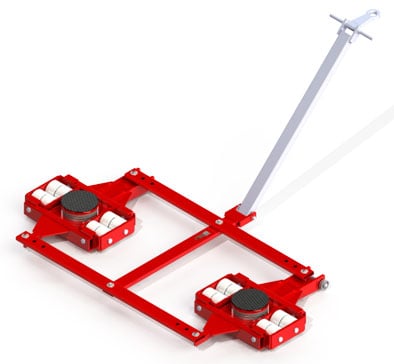

Invest in a safer way to move heavy loads! The F40 and TL40 Transport Skates are a 4-point machine skate pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F40 machine skate is a straight-line skate set in the rear of the load with an adjustable connecting bar. The TL40 offers two turning plates and handlebar for pulling and steering. This mid-size dolly pairing can transport loads up to 176,000lbs (80 metric tons, 40 metric tons for each F40 and TL40). The four-point machine skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a low loading height of 7.1in (180mm). A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
Like all GKS products, our Industrial Tandem Skates have been tested to meet our high quality standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business’s needs. request a quote or call us direct at (937)863-9075.
