SKU: 3-11770 Categories: Industrial Dollies, Transport Dollies

F40 Transport Dolly

Machine Skate

$6,395.00

In stock

How To Use GKS Transport Dollies

Additional information

Weight 381.5 lbs
Load Capacity

88,000 lbs (40 t) /400kN

Loading height / number of wheels (140 x 85mm)

7.1" / 16
180 mm / 16

Contact Surface / Cassette

14.6 x 14.6" (370 x 370 mm)

Connecting Bar, Adjustable

32.3 – 69.3" (820 x 1760 mm)

Overall dimensions (L x W)

15.3 x 58.7" / 389 x 1490 mm

Weight

463 lbs. / 210 kg

Key Features

  • Low loading height (7.1″)
  • Connecting bar with joint to accommodate for uneven surfaces
  • Width is adjustable based on the load
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • Simplified Design—less parts, less problems
  • Next day lead time

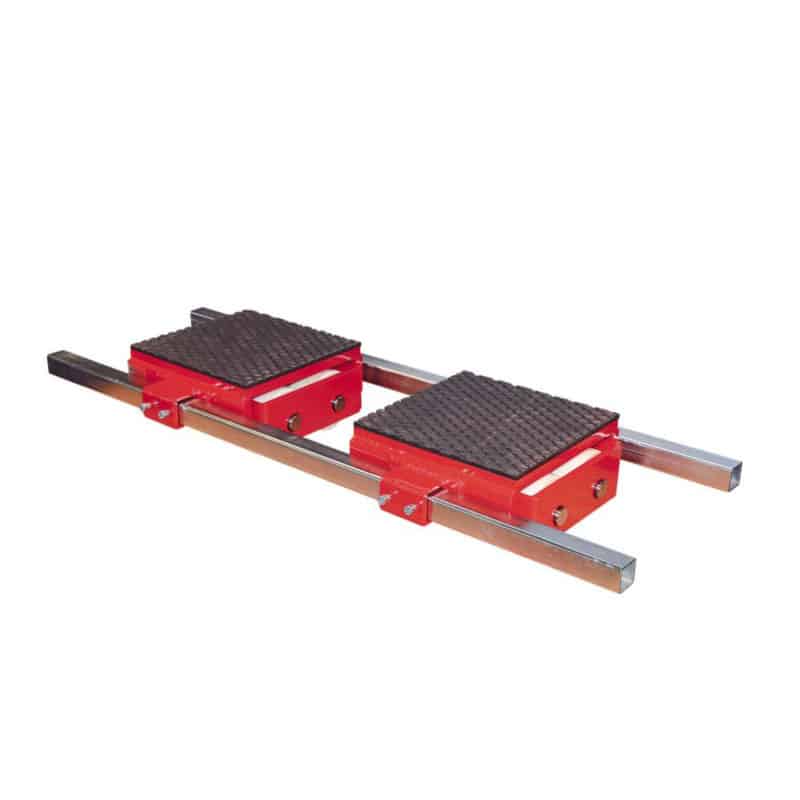

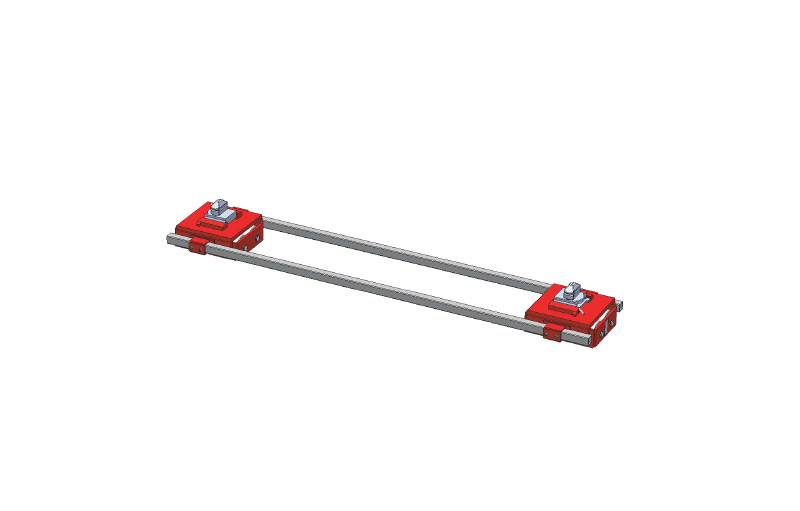

GKS-Perfekt Transport Dolly F40

Width-adjustable dolly for the transport of loads up to 88,000 lbs. / 40 t.

Loading height 7.1" / 180 mm only.

Standard use as a 3-point-system in combination with the steerable dollie L40 (item # 11771) up to max. 176,000 lbs. / 80 t load capacity.

Rollers do not mark floors.

Due to the same loading height interchangeable with GKS-Perfekt dollies L20/L30/L60 (item # 11061/11993/10227) or adaptable as a 4-point-system in combination with Tandem dollies TL20/TL40 (item # 11803/11148).

Replacement roller: item # 10022.
