SKU: 5-12035 Categories: Industrial Dollies, Industrial Tandem Dollies

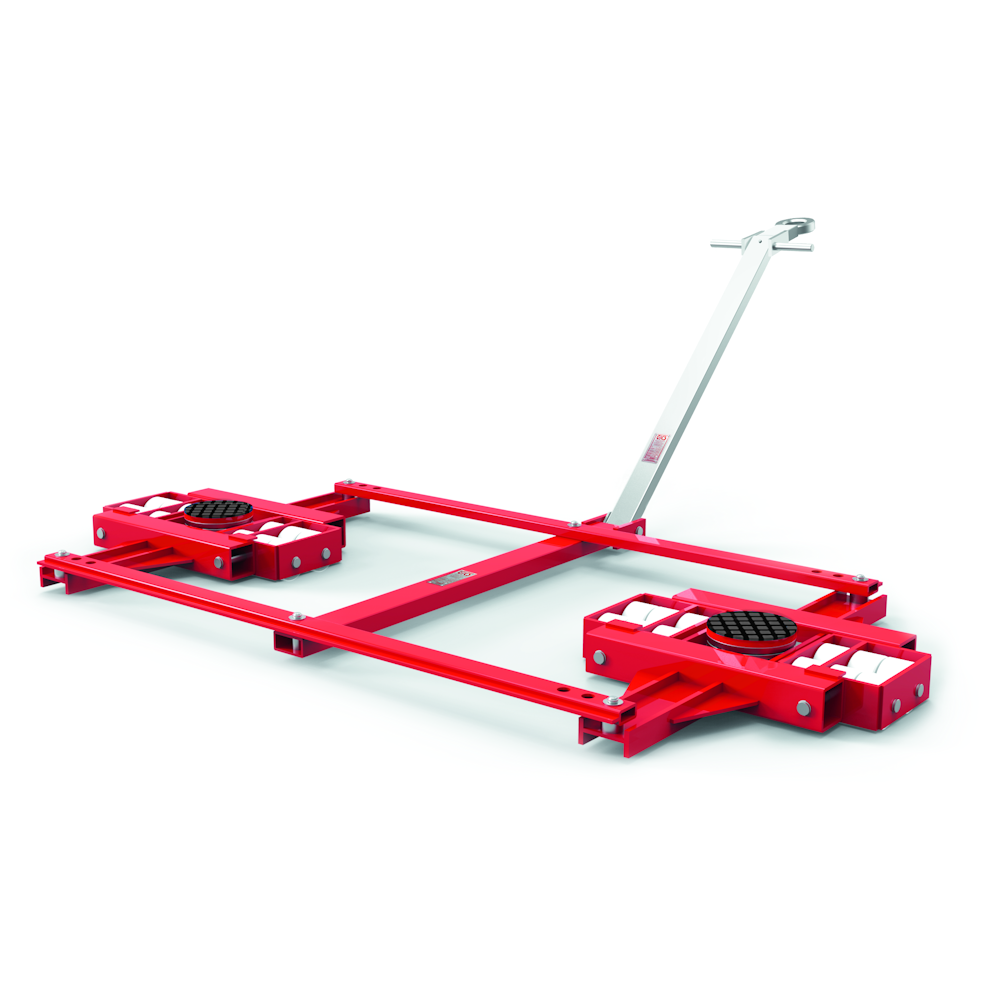

TL60 Tandem Dolly

$21,289.00

In stock

Product ManualProduct SchematicSpare PartsProduct Catalog

Additional information

Weight

1,266 lbs. / 570 kg

Load Capacity

132,000 lbs (60 t) /600kN

Loading height / number of wheels (140 x 85 mm)

7.1" / 8
180 mm / 8

2 Swivel plates / Steering Angle

∅ 9.8” (250 mm) / ± 45°

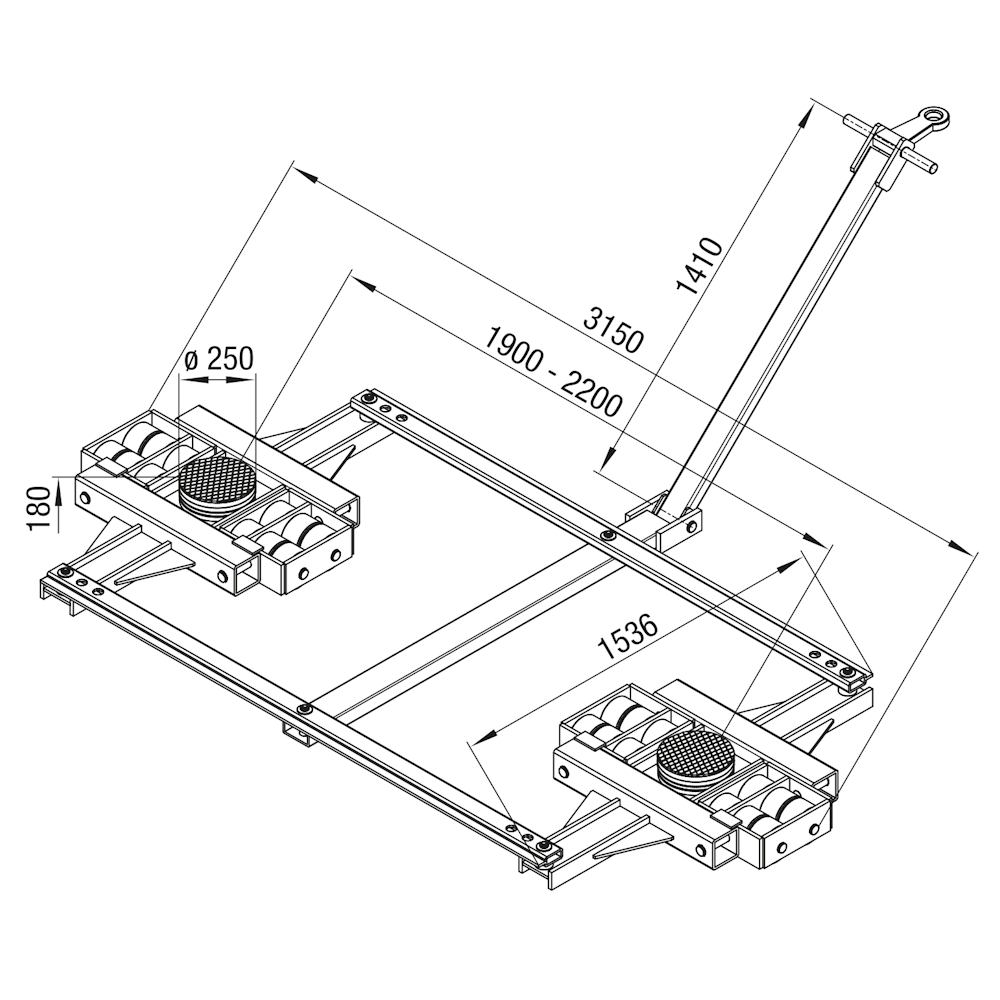

Overall Dimensions (L x W)

60.5 x 124" /
1536 x 3150 mm

Connecting Bar, Adjustable

74.8" – 86.6" (1900 – 2200 mm)

Steering Handlebar

55.5" (1410 mm)

Position Points

3

Key Features

  • Low loading height (7″)
  • Swivel plates to facilitate steering
  • Pulling handle with tow eye
  • Durable, non-marking rollers
  • 5 year warranty

Competitive Edge

  • Thick, grooved rubber pads to prevent load slippage
  • Simplified Design—less parts, less problems
  • All wheels are boxed in for dent protection
  • Next day lead time

Related products

GKS-Perfekt Transport Dolly Tandem TL60

Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 132,000 lbs. / 60 t

Loading height 7.1" / 180 mm only.

Standard use only as a 4-point-system in combination with the width-adjustable dolly F60 (item # 10226) up to max. 264,000 lbs. / 120 t load capacity.

Rollers do not mark floors.

Due to the same loading height interchangeable with GKS-Perfekt dollies F20/F30/F40/F60 (item # 11060/11992/11770/10226).

Replacement roller: item # 10022.
