SKU: 1-10181 Categories: Hydraulic Toe Jacks, Jacks

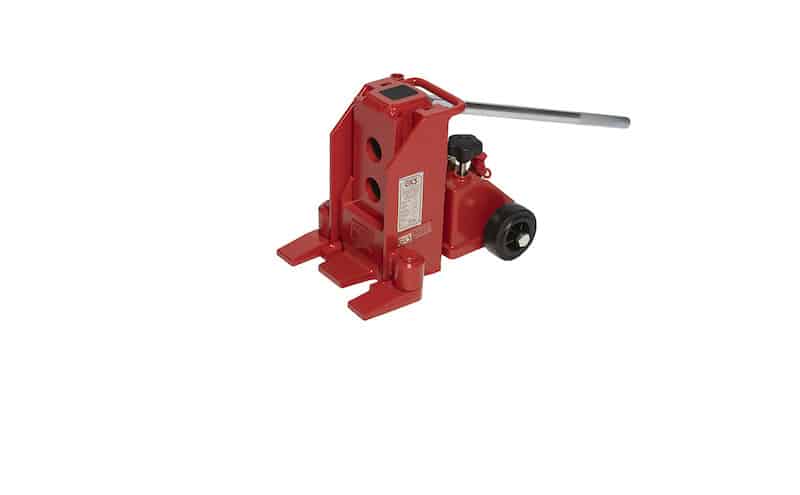

V5 Hydraulic Toe Jack

For moving large loads through tight spaces.

$1,395.00

Additional information

Weight46.3 lbs
Dimensions10.5 × 8.4 × 9.9 in
Load Capacity

11,000 lbs. (5 t) 50kN

Working Pressure

7,542 psi (520 bar)

Loading Height: Toe Min

Toe min 0.6" (15 mm)

Loading Height: Toe Max

Toe max 5.7" (145 mm)

Loading Height

Top Plate 10" (252 mm)

Lifting height

5.5" (140 mm)

Top Plate LxW

2.7 x 2.4" (68 x 60 mm)

Lift Toe Positions

3

Dimensions LxWxH

11.2 x 9.3 x 10" (285 x 235 x 252 mm)

Weight with oil

46 lbs. / 21 kg

How to use GKS hydraulic toe jack

Why buy a hydraulic toe jack?

Key Features

  • Forged, steel safety toe; which is more durable than cast steel
  • Same capacity on the toe and the head
  • Ability to operate with the manual lift or a hydraulic pump
  • 5-year warranty

Competitive Edge

  • The original adjustable toe jack
  • Simplified Design—less parts means less problems
  • Next day lead time
  • Non slip friction pad on the head of the jack
  • Jack refurbishment services available

Factory, workshop, rigging and maintenance operators seeking an easy-to-use, sturdy and self-contained hydraulic jack should look no further than the GKS-PERFEKT Toe Jack V5.

Designed for years of robust indoor and outdoor lifting, the V5 toe jack is built for easy operation. It is extremely sturdy, self-contained and can handle a full load capacity of up to 11,000lbs. on the toe and top plate. Its capacity can be doubled when operated in tandem with a second hydraulic toe jack using an external GKS PV Hand Pump. The V5 toe jack also features a minimum loading height that is only 15 millimeters, and wheels that facilitate easy maneuvering. This makes the V5 an ideal solution for lifting equipment in a range of environments, from factories and shop floors to assembly lines and remote locations.

The V5 jack is also available in a nickel-plated version for use in clean rooms.

The GKS-PERFEKT V5 toe jack is also designed to be extremely safe. It’s built with our well proven, one-piece, height-adjustable safety toe that we’ve manufactured to a high safety margin. It also includes a release valve that allows loads to be lowered precisely and carefully, plus a safety valve for overload protection.

All GKS-PERFEKT toe jacks are ready to use when they arrive and are quality built with high-grade materials and precision guide-ways. The V5 toe jack incorporates a modular design that facilitates easy service and comes with a five-year limited warranty, plus lifetime technical support. To ensure optimal functionality and appearance, 100 percent of our heavy duty jacks pass a thorough testing and approval process before leaving the factory. Every jack must meet Testmark BGV D8 (Germany) and ANSI/ASME (USA) standards.

For more information on GKS-PERFEKT hydraulic toe jacks, request a quote or call 937.324.8867.
