SKU: 1-10186 Categories: Jacks, Toe Jacks with External Hydraulics

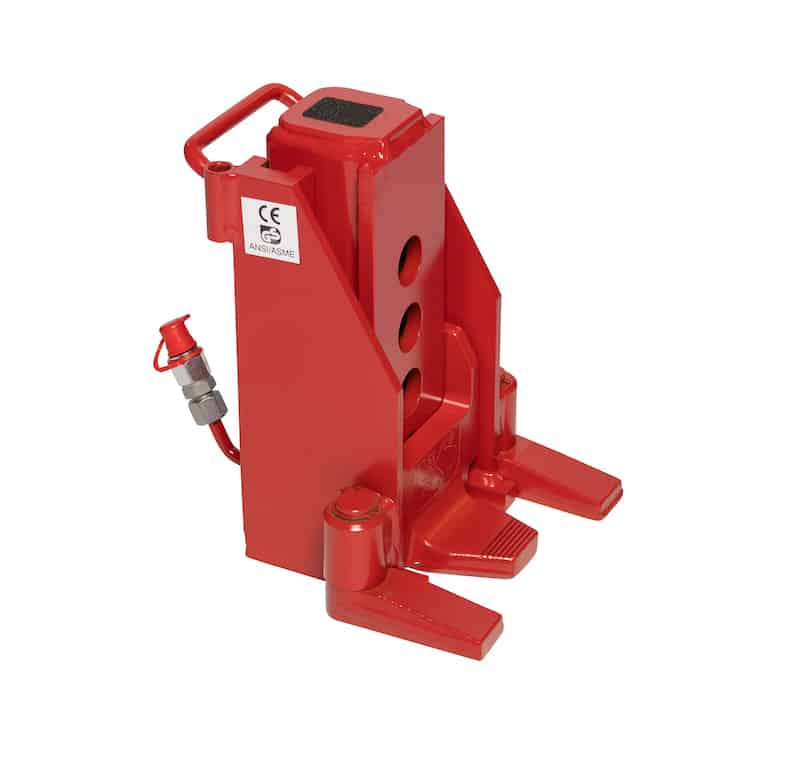

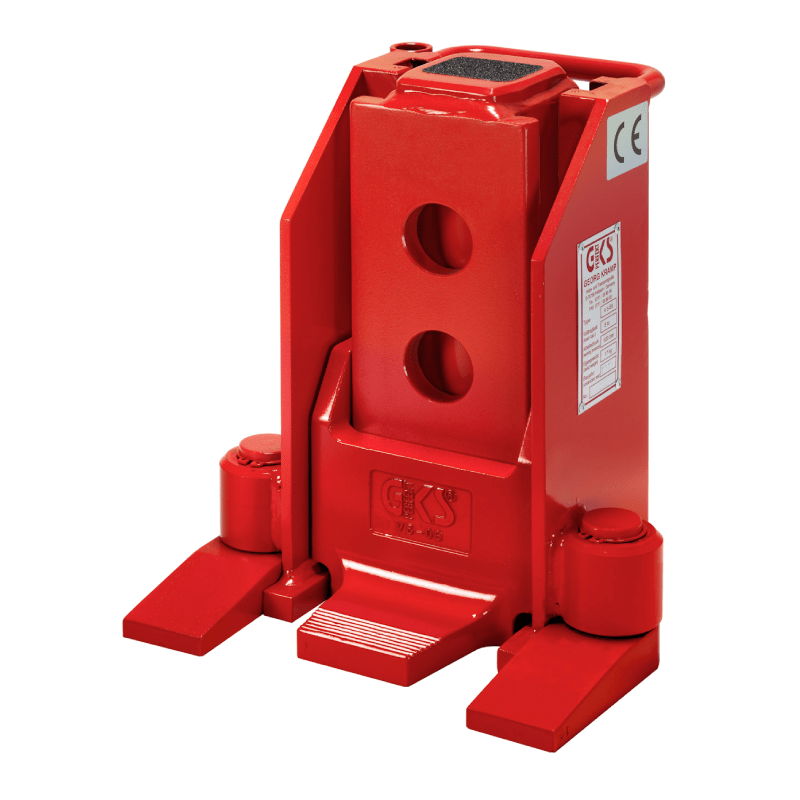

V10-EX Toe Jack with External Hydraulics

For moving large loads through tight spaces.

$1,450.00

In stock

Additional information

Weight 60 lbs
Dimensions 10.5 × 8.4 × 9.9 in
Load Capacity

22,000 lbs. (10 t) 100kN

Working Pressure

7,542 psi (520 bar)

Loading Height: Toe Min

Toe min 0.8" (20 mm)

Loading Height: Toe Max

Toe max 6.9" (175 mm)

Loading Height

Top Plate 12.2" (310 mm)

Lifting height

6.3" (160 mm)

Top Plate LxW

3.2 x 2.8" (80 x 72 mm)

Lift Toe Positions

4

Dimensions LxWxH

11 x 9.3 x 12.2" (280 x 237 x 310 mm)

Weight

60 lbs. / 27 kg

Key Features

  • Built without internal hydraulics to minimize weight and size—must use with a hydraulic pump
  • Same capacity on the toe and the head
  • Forged, steel safety toe; which is more durable than cast steel
  • 5-year warranty

Competitive Edge

  • The original adjustable toe jack
  • Simplified Design—less parts means less problems
  • Next day lead time
  • Non slip friction pad on the head of the jack
  • Jack refurbishment services available

GKS-Perfekt Toe Jack V10-Ex

Via external pump PV (item # 10198) operated, extremely sturdy hydraulic toe jack for professional use up to 22,000 lbs. / 10 t load capacity.

For inside/outside use in factories, workshops, for rigging or maintenance purposes, for heavy hauling and more, where the remote operation for safety reasons is recommended.

Full load capacity on toe and top plate.

One-piece, height-adjustable safety toe with 5 years warranty.

Min. lifting height is 0.8" / 20 mm only!

Release valve for precise and sensitive lowering.

Safety valve for overload protection.

Double capacity by operating a second jack through our external pump PV.
