| Weight | 167lbs (75kg) |
|---|---|
| Load Capacity | |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 8 |
| Overall dimensions (L x W) | 24 x 89" / |
| Steering Handlebar | 37.8" (960 mm) |
| Weight | 111 lbs. / 50 kg |
|---|---|
| Load Capacity | |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 8 |
| Overall dimensions (L x W) | 12 x 102.8" / |
| Weight | 167lbs (75kg) |
|---|---|
| Load Capacity | |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 8 |
| Overall dimensions (L x W) | 24 x 89" / |
| Steering Handlebar | 37.8" (960 mm) |
| Weight | 111 lbs. / 50 kg |
|---|---|
| Load Capacity | |
| Loading Height | 255mm / 10in |
| Load height* / number of wheels (85 x 85 mm) | 7" / 8 |
| Overall dimensions (L x W) | 12 x 102.8" / |

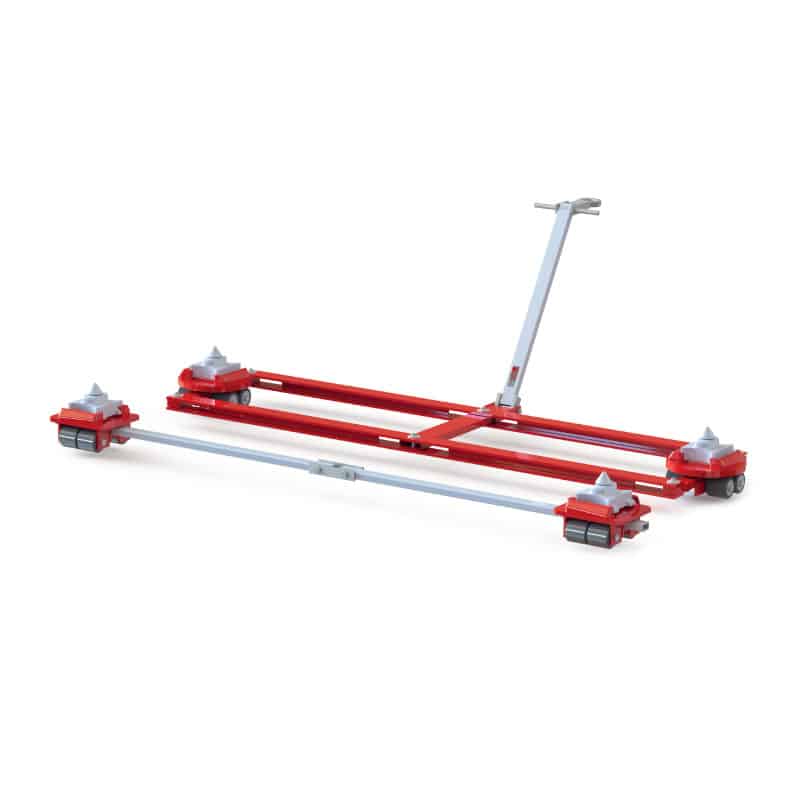

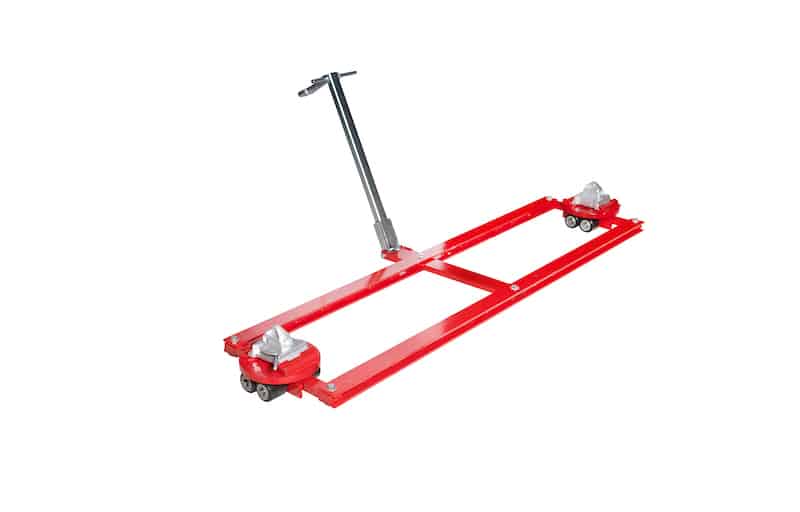

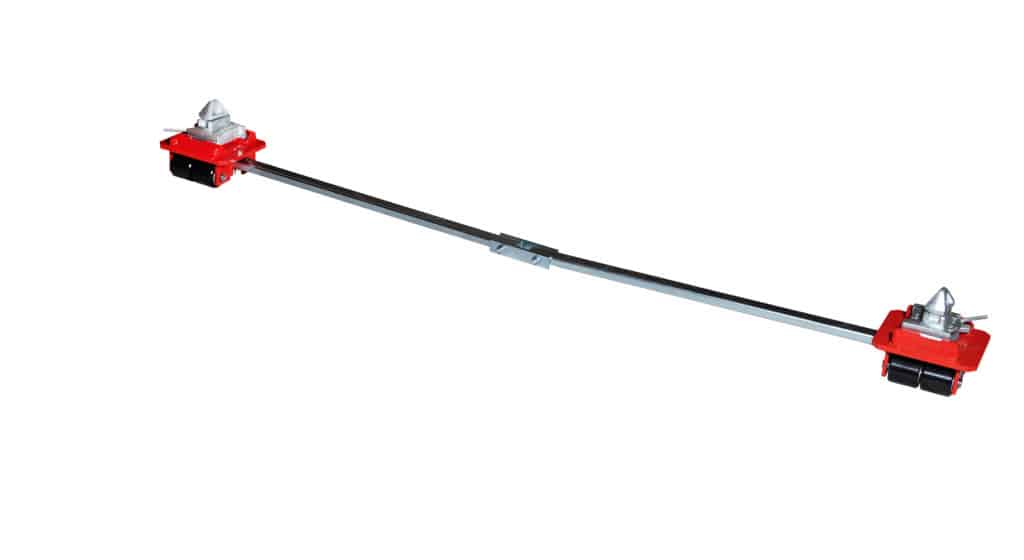

Invest in an easier and safer way to move shipping containers! GKS Container Dollies offer a safe and easy way to move shipping containers inside or outdoors. Our container dollies offer twist locks that fully lock into the corners of ISO shipping containers creating a secure connection. The F6-C straight skates in the rear of the load offer a total capacity of 13,200lbs (6 metric tons). The F6-C’s come with a connecting bar to create additional stability. The TL6-C steer skate, capacity of 13,200lbs,(6 metric tons), offers turning pads at each corner and a handlebar for pulling and steering. Total pairing capacity is 26,400lbs (12 metric tons). These container dolly units offer a loading height of 7in (176mm) and a height when loaded of 6.3in (161mm).
Like all GKS products, our Container Dollies meet Testmark BGV D8 (Germany) and ANSI/ASME (US) standards and have been proven to be an exceptional tool in a wide range of settings. The team at GKS is committed to find you the high-quality load bearing system that will best meet your business’s needs. request a quote or call us direct at (937)863-9075.
